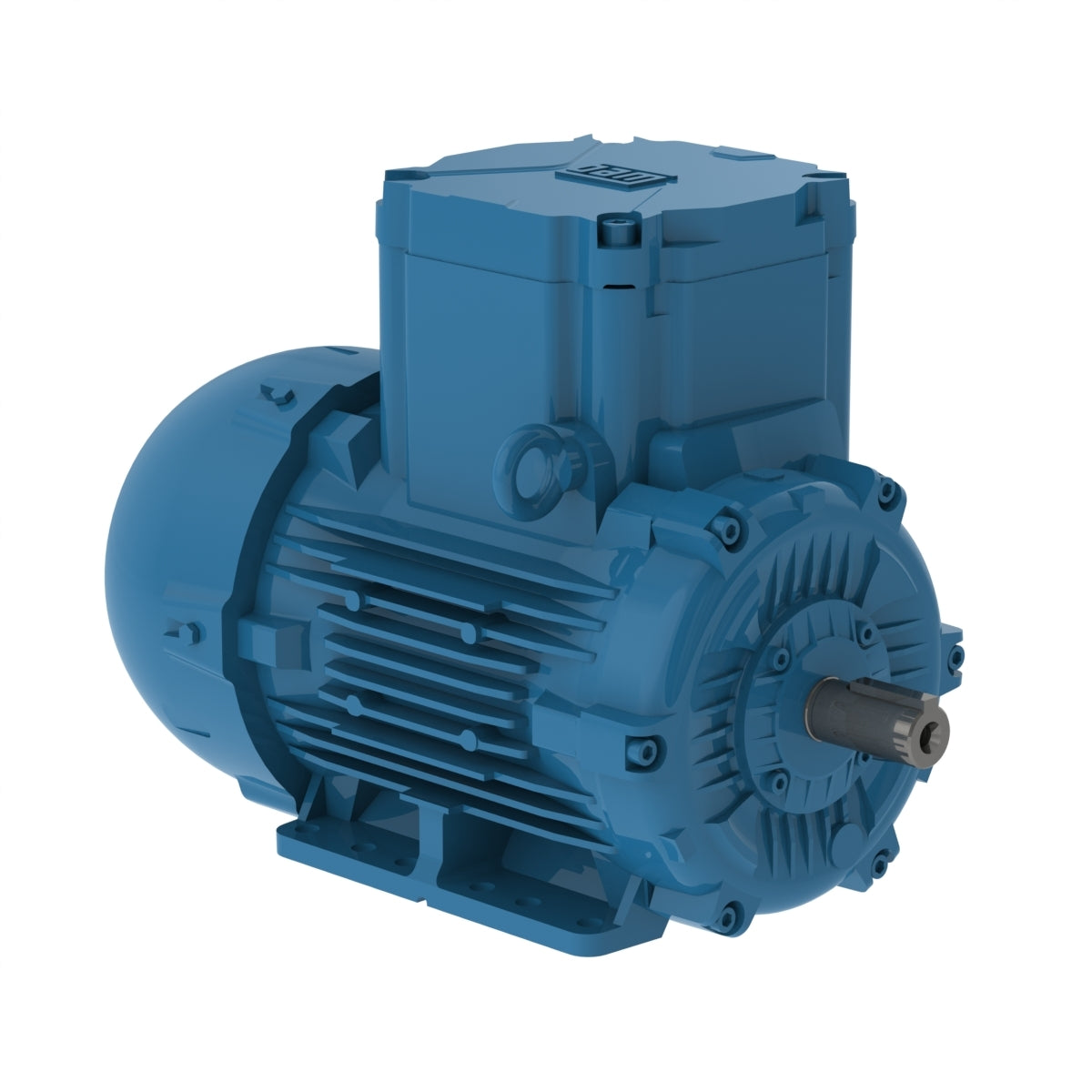

Weg Electric E00112XP3WAX90LF3-W, 1 1/2 Hp, 90S/L Frame, 1000 RPM, 220-240/380-415//460 Vac, TEFC, 3 PH, Foot-mounted, W22Xdb IE2.

E00112XP3WAX90LF3-W, 1 1/2 Hp, 90S/L Frame, 1000 RPM, 220-240/380-415//460 Vac, TEFC, 3 PH, Foot-mounted, W22Xdb IE2.

Engineering Data

Standard IEC 60034-1
Frequency 50 Hz
Voltage 220-240/380-415//460 V
Number of poles 6
Degree of Protection IP56
Synchronous speed 1000 rpm
Output rating 1.1 kW
Mounting Foot-mounted
Flange Without
Mounting B3T
Terminal box¹ Top
Enclosure IC411 - TEFC

Frame 90S/L
Output 1.1 kW (1.5 HP)
Number of Poles 6
Frequency 50 Hz
Rated speed 925 rpm
Slip 7.50 %
Rated voltage 230/400 V
Rated current 4.83/2.78 A
L. R. Amperes 22.7/13.1 A
LRC 4.7
No load current 3.13/1.80 A
Rated torque 1.16 kgfm
Locked rotor torque 229 %
Breakdown torque 220 %
Locked rotor time 30s (cold) 17s (hot)
Moment of inertia (J) 0.0060 kgm²
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP56
Enclosure IC411 - TEFC
Mounting B3T
Rotation¹ Both (CW and CCW)
Noise level² 45.0 dB(A)
