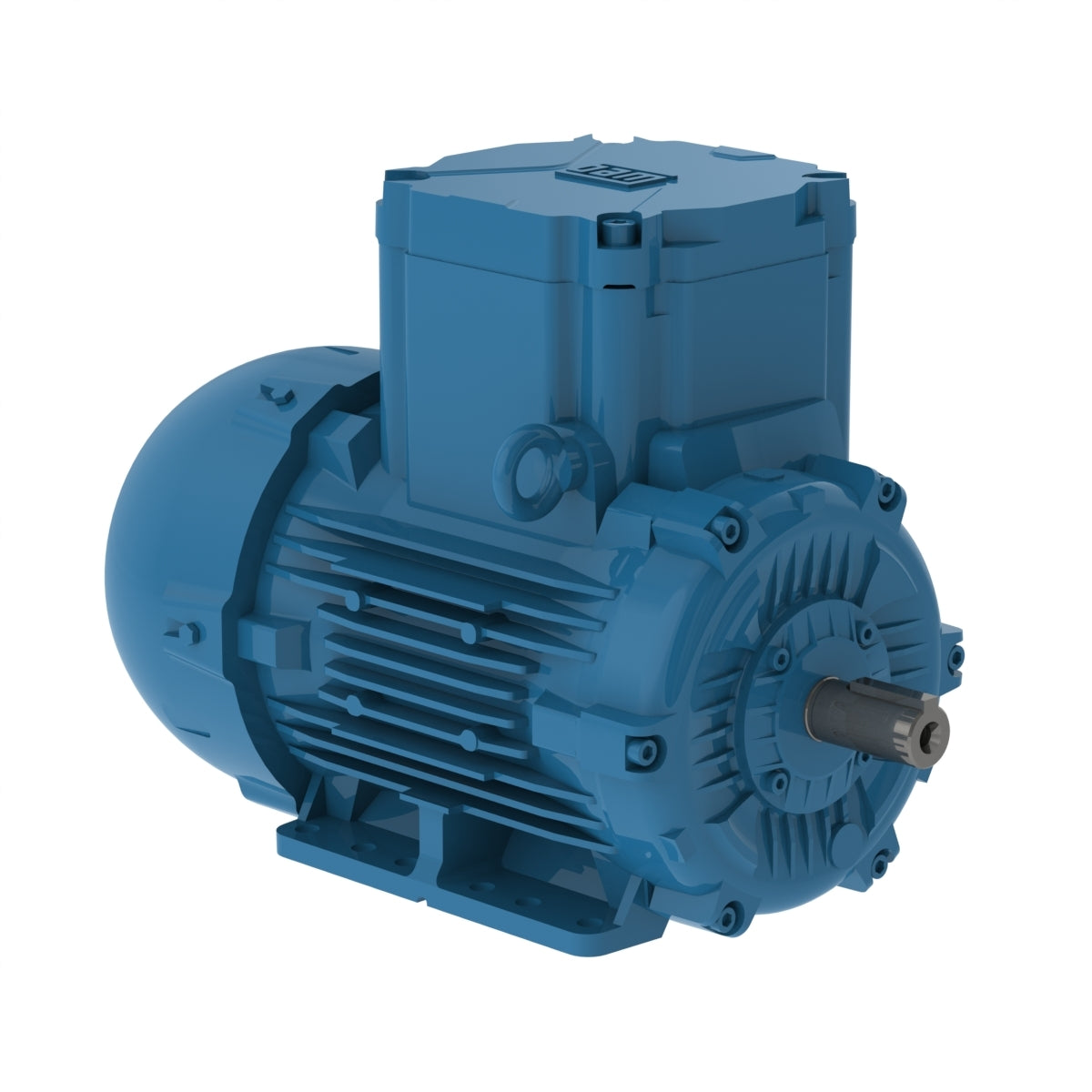

Weg Electric E00436XP3YAX112MF3-W, 1/2 Hp, 80 Frame, 1000 RPM, 220-240/380-415//460 Vac, TEFC, 3 PH, Foot-mounted, W22Xdb IE2.

E00436XP3YAX112MF3-W, 1/2 Hp, 80 Frame, 1000 RPM, 220-240/380-415//460 Vac, TEFC, 3 PH, Foot-mounted, W22Xdb IE2.

Engineering Data

Flameproof motors designed to meet the latest market requirements and certifications for Hazardous Areas. Offer high efficiency, low noise and vibration levels, allow applications in severe duties.

Product features
Standard IEC 60034-1
Frequency 50 Hz
Voltage 220-240/380-415//460 V
Number of poles 6
Degree of Protection IP56
Synchronous speed 1000 rpm
Output rating 0.37 kW
Mounting Foot-mounted
Flange Without
Mounting B3T
Terminal box¹ Top
Enclosure IC411 - TEFC

Frame 80
Output 0.37 kW (0.5 HP)
Number of Poles 6
Frequency 50 Hz
Rated speed 920 rpm
Slip 8.00 %
Rated voltage 230/400 V
Rated current 1.91/1.10 A
L. R. Amperes 7.84/4.51 A
LRC 4.1
No load current 1.30/0.750 A
Rated torque 2.83 ft.lb
Locked rotor torque 200 %
Breakdown torque 200 %
Locked rotor time 48s (cold) 27s (hot)
Moment of inertia (J) 0.0522 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP56
Enclosure IC411 - TEFC
Mounting B3T
Rotation¹ Both (CW and CCW)
Noise level² 43.0 dB(A)
