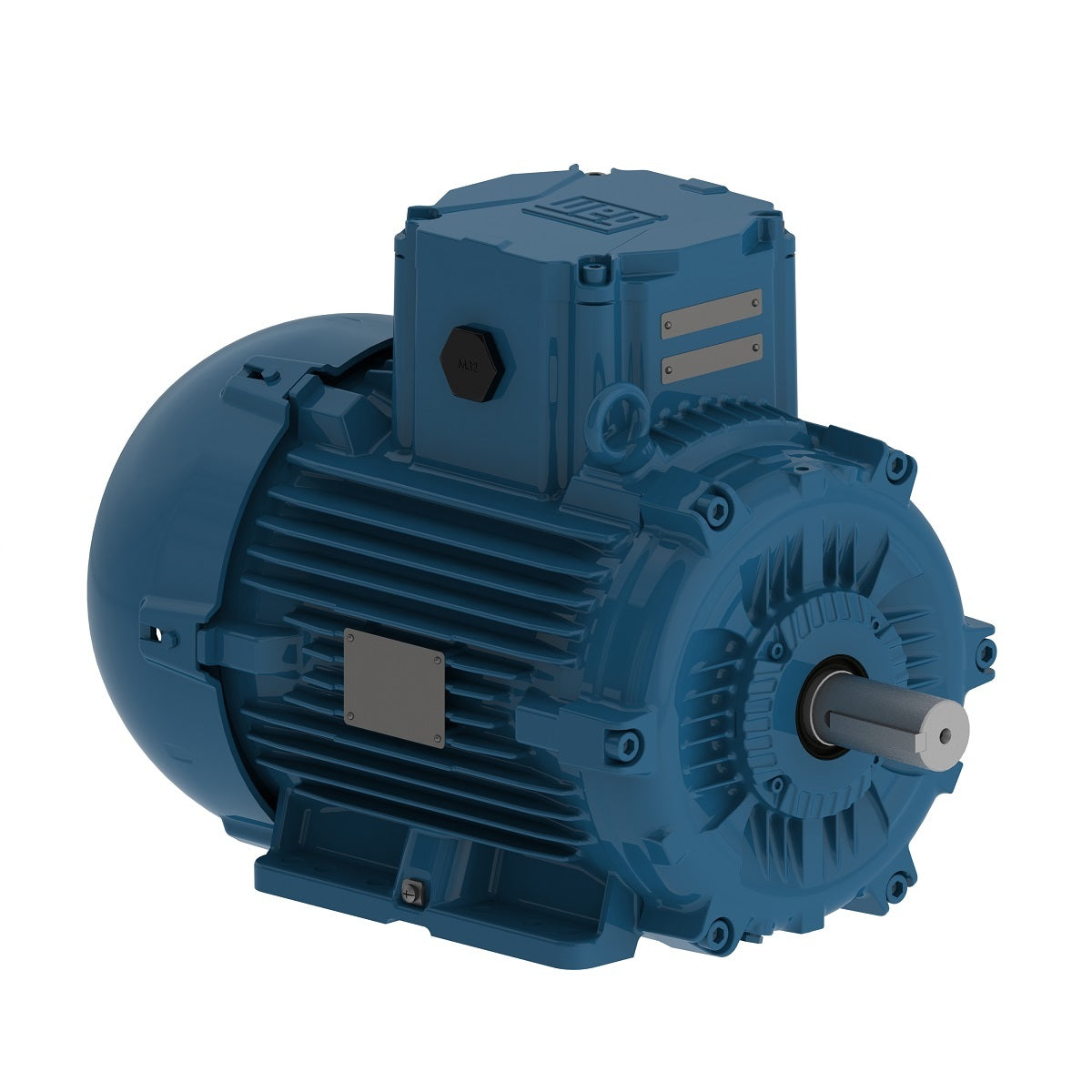

Weg Electric E00718XP3YAX132MF3-W, 10 Hp, 132S/M Frame, 1500 RPM, 380-415/660//460 Vac, TEFC, 3 PH, Foot-mounted, W22Xdb IE2.

E00718XP3YAX132MF3-W, 10 Hp, 132S/M Frame, 1500 RPM, 380-415/660//460 Vac, TEFC, 3 PH, Foot-mounted, W22Xdb IE2.

Engineering Data

Flameproof motors designed to meet the latest market requirements and certifications for Hazardous Areas. Offer high efficiency, low noise and vibration levels, allow applications in severe duties.

Product features
Standard IEC 60034-1
Frequency 50 Hz
Voltage 380-415/660//460 V
Number of poles 4
Degree of Protection IP56
Synchronous speed 1500 rpm
Output rating 7.5 kW
Mounting Foot-mounted
Flange Without
Mounting B3T
Terminal box¹ Top
Enclosure IC411 - TEFC

Frame 132S/M
Output 7.5 kW (10 HP)
Number of Poles 4
Frequency 50 Hz
Rated speed 1465 rpm
Slip 2.33 %
Rated voltage 400/690 V
Rated current 14.5/8.41 A
L. R. Amperes 113/65.6 A
LRC 7.8
No load current 7.30/4.23 A
Rated torque 36.1 ft.lb
Locked rotor torque 210 %
Breakdown torque 300 %
Locked rotor time 10s (cold) 6s (hot)
Moment of inertia (J) 1.25 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP56
Enclosure IC411 - TEFC
Mounting B3T
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
