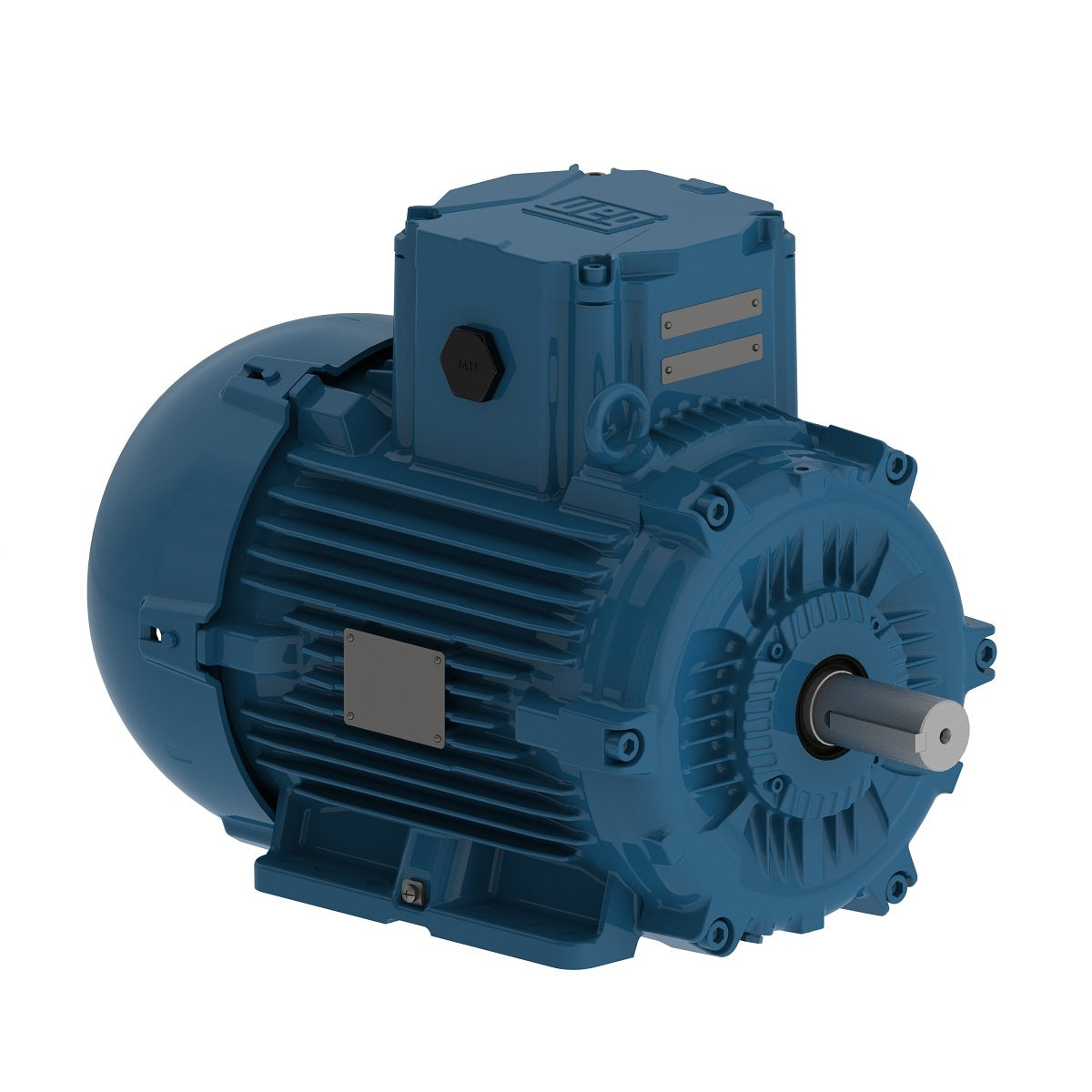

Weg Electric E00736XP3YAX132SF3-W, 10 Hp, 132S/M Frame, 3000 RPM, 380-415/660//460 Vac, TEFC, 3 PH, Foot-mounted, W22Xdb IE2.

E00736XP3YAX132SF3-W, 10 Hp, 132S/M Frame, 3000 RPM, 380-415/660//460 Vac, TEFC, 3 PH, Foot-mounted, W22Xdb IE2.

Engineering Data

Flameproof motors designed to meet the latest market requirements and certifications for Hazardous Areas. Offer high efficiency, low noise and vibration levels, allow applications in severe duties.

Product features
Standard IEC 60034-1
Frequency 50 Hz
Voltage 380-415/660//460 V
Number of poles 2
Degree of Protection IP56
Synchronous speed 3000 rpm
Output rating 7.5 kW
Mounting Foot-mounted
Flange Without
Mounting B3T
Terminal box¹ Top
Enclosure IC411 - TEFC

Frame 132S/M
Output 7.5 kW (10 HP)
Number of Poles 2
Frequency 50 Hz
Rated speed 2935 rpm
Slip 2.17 %
Rated voltage 400/690 V
Rated current 14.1/8.17 A
L. R. Amperes 98.7/57.2 A
LRC 7.0
No load current 5.50/3.19 A
Rated torque 18.0 ft.lb
Locked rotor torque 240 %
Breakdown torque 320 %
Locked rotor time 16s (cold) 9s (hot)
Moment of inertia (J) 0.5975 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP56
Enclosure IC411 - TEFC
Mounting B3T
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
