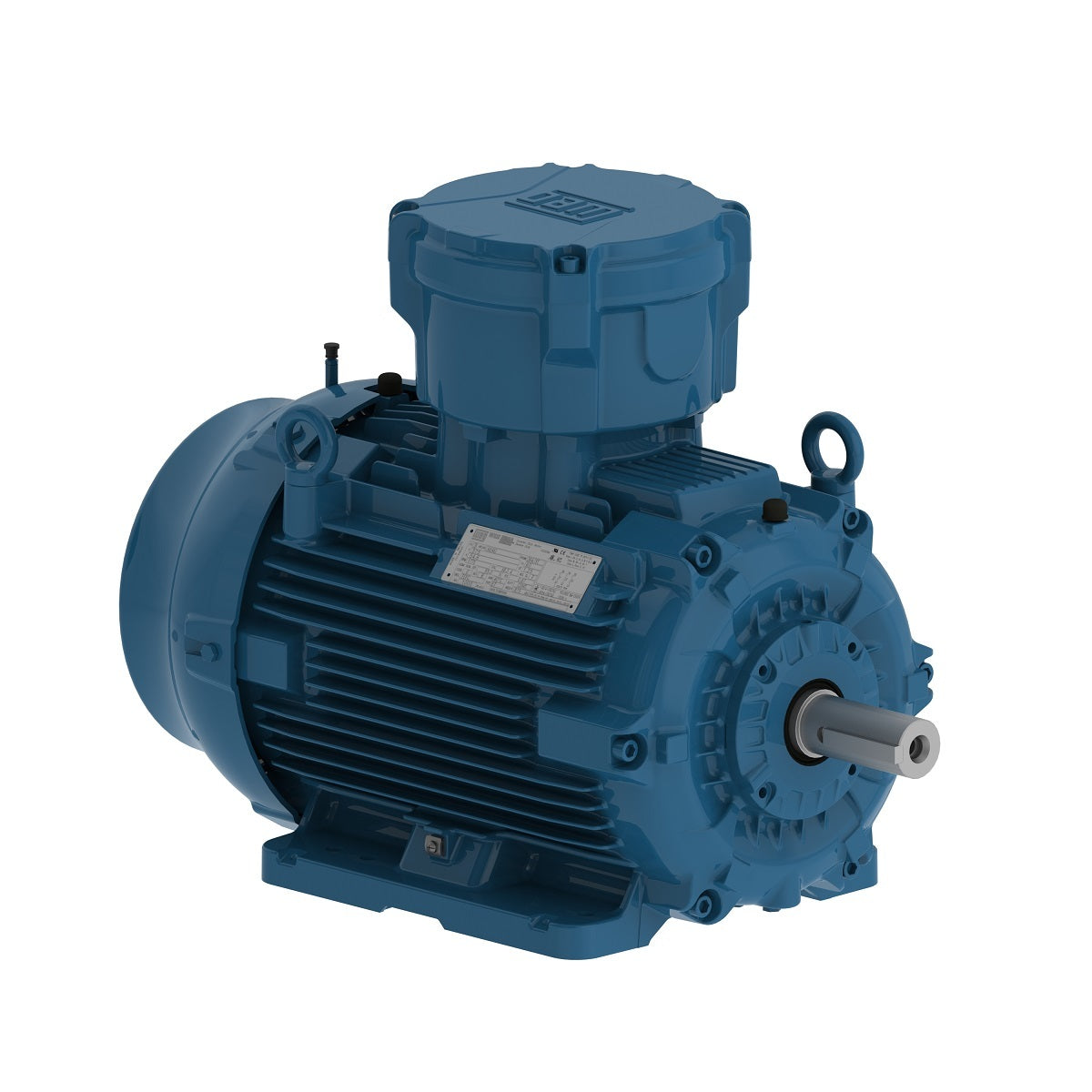

Weg Electric E01536XP3YAX160MF3-W, 20 Hp, 160M/L Frame, 3000 RPM, 380-415/660//460 Vac, TEFC, 3 PH, Foot-mounted, W22Xdb IE2.

E01536XP3YAX160MF3-W, 20 Hp, 160M/L Frame, 3000 RPM, 380-415/660//460 Vac, TEFC, 3 PH, Foot-mounted, W22Xdb IE2.

Engineering Data

Standard IEC 60034-1
Frequency 50 Hz
Voltage 380-415/660//460 V
Number of poles 2
Degree of Protection IP56
Synchronous speed 3000 rpm
Output rating 15 kW
Mounting Foot-mounted
Flange Without
Mounting B3T
Terminal box¹ Top
Enclosure IC411 - TEFC

Frame 160M/L
Output 15 kW (20 HP)
Number of Poles 2
Frequency 50 Hz
Rated speed 2945 rpm
Slip 1.83 %
Rated voltage 400/690 V
Rated current 27.6/16.0 A
L. R. Amperes 204/118 A
LRC 7.4
No load current 9.30/5.39 A
Rated torque 35.9 ft.lb
Locked rotor torque 260 %
Breakdown torque 310 %
Locked rotor time 14s (cold) 8s (hot)
Moment of inertia (J) 1.23 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP56
Enclosure IC411 - TEFC
Mounting B3T
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
