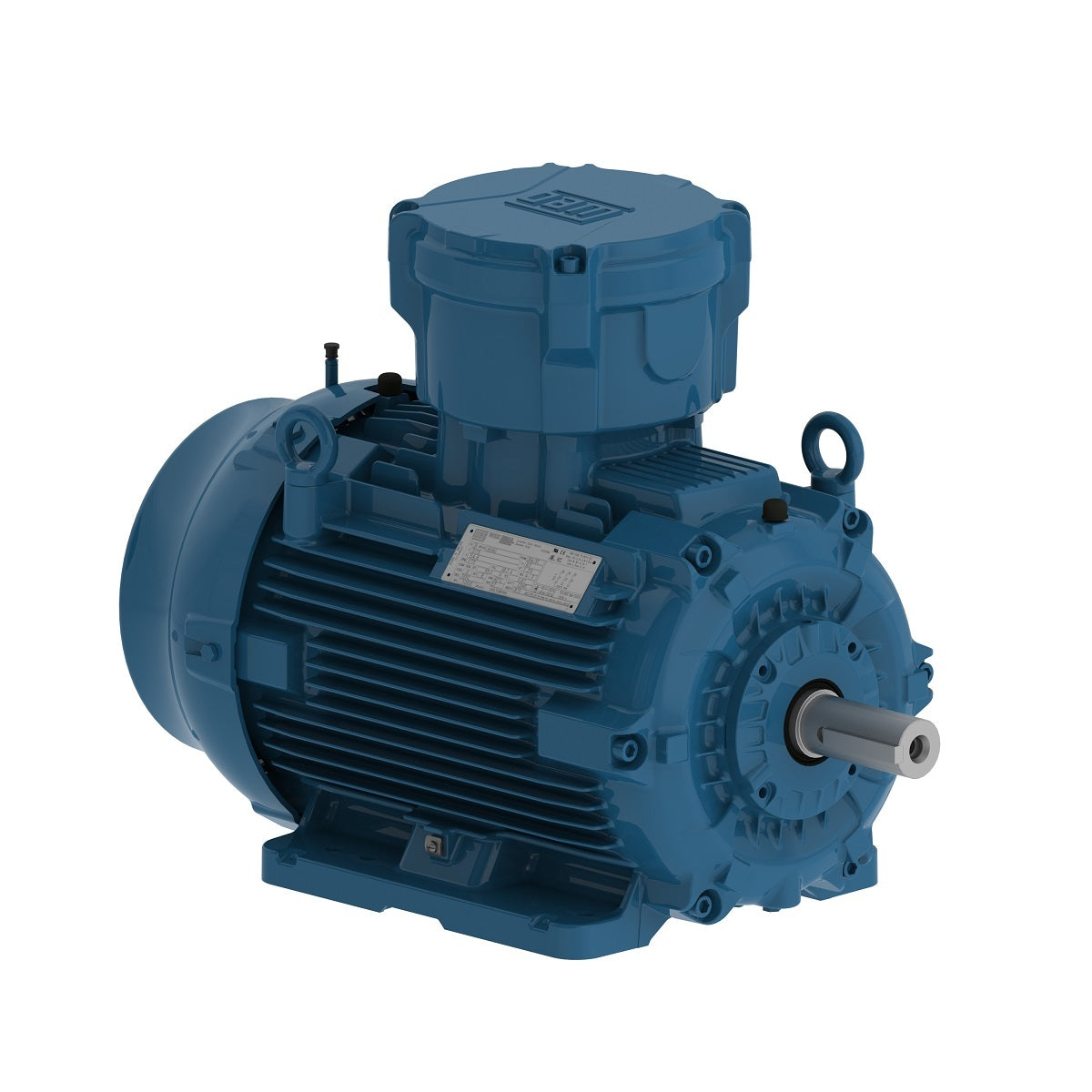

Weg Electric E01812XP3YAX200LF3-W, 25 HP, 200M/L Frame, 1000 RPM, 380-415/660//460 Vac, TEFC, 3 PH, Foot-mounted, W22Xdb IE2.

E01812XP3YAX200LF3-W, 25 HP, 200M/L Frame, 1000 RPM, 380-415/660//460 Vac, TEFC, 3 PH, Foot-mounted, W22Xdb IE2.

Engineering Data

Standard IEC 60034-1
Frequency 50 Hz
Voltage 380-415/660//460 V
Number of poles 6
Degree of Protection IP56
Synchronous speed 1000 rpm
Output rating 18.5 kW
Mounting Foot-mounted
Flange Without
Mounting B3T
Terminal box¹ Top
Enclosure IC411 - TEFC

Frame 200M/L
Output 18.5 kW (25 HP)
Number of Poles 6
Frequency 50 Hz
Rated speed 975 rpm
Slip 2.50 %
Rated voltage 400/690 V
Rated current 35.7/20.7 A
L. R. Amperes 203/118 A
LRC 5.7
No load current 15.0/8.70 A
Rated torque 134 ft.lb
Locked rotor torque 210 %
Breakdown torque 250 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 8.34 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP56
Enclosure IC411 - TEFC
Mounting B3T
Rotation¹ Both (CW and CCW)
Noise level² 60.0 dB(A)
