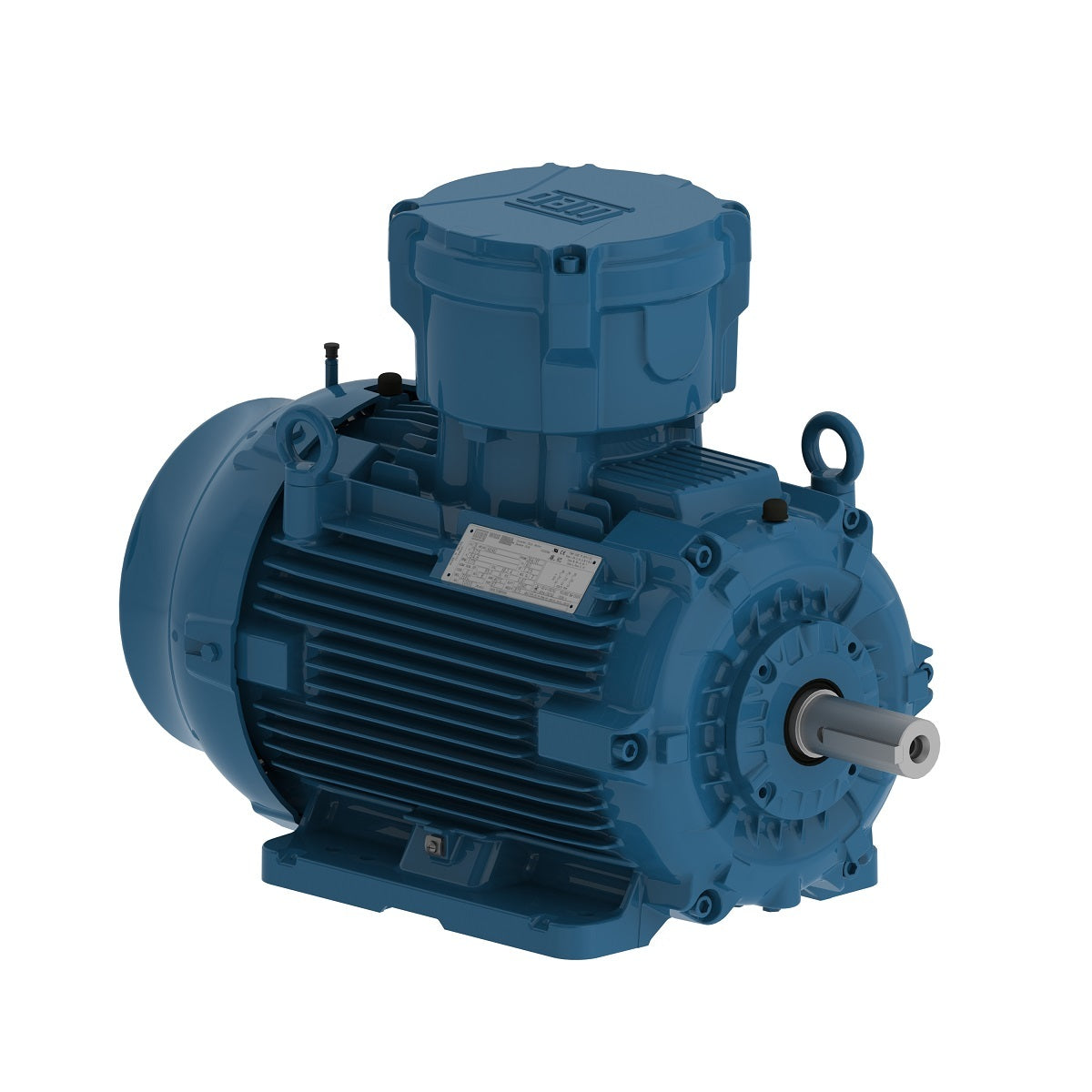

Weg Electric E01836XP3YAX160LF3-W, 25 HP, 160M/L Frame, 3000 RPM, 380-415/660//460 Vac, TEFC, 3 PH, Foot-mounted, W22Xdb IE2.

E01836XP3YAX160LF3-W, 25 HP, 160M/L Frame, 3000 RPM, 380-415/660//460 Vac, TEFC, 3 PH, Foot-mounted, W22Xdb IE2.

Engineering Data

Standard IEC 60034-1
Frequency 50 Hz
Voltage 380-415/660//460 V
Number of poles 2
Degree of Protection IP56
Synchronous speed 3000 rpm
Output rating 18.5 kW
Mounting Foot-mounted
Flange Without
Mounting B3T
Terminal box¹ Top
Enclosure IC411 - TEFC

Frame 160M/L
Output 18.5 kW (25 HP)
Number of Poles 2
Frequency 50 Hz
Rated speed 2950 rpm
Slip 1.67 %
Rated voltage 400/690 V
Rated current 33.7/19.5 A
L. R. Amperes 286/166 A
LRC 8.5
No load current 11.4/6.61 A
Rated torque 44.2 ft.lb
Locked rotor torque 290 %
Breakdown torque 360 %
Locked rotor time 12s (cold) 7s (hot)
Moment of inertia (J) 1.48 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP56
Enclosure IC411 - TEFC
Mounting B3T
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
