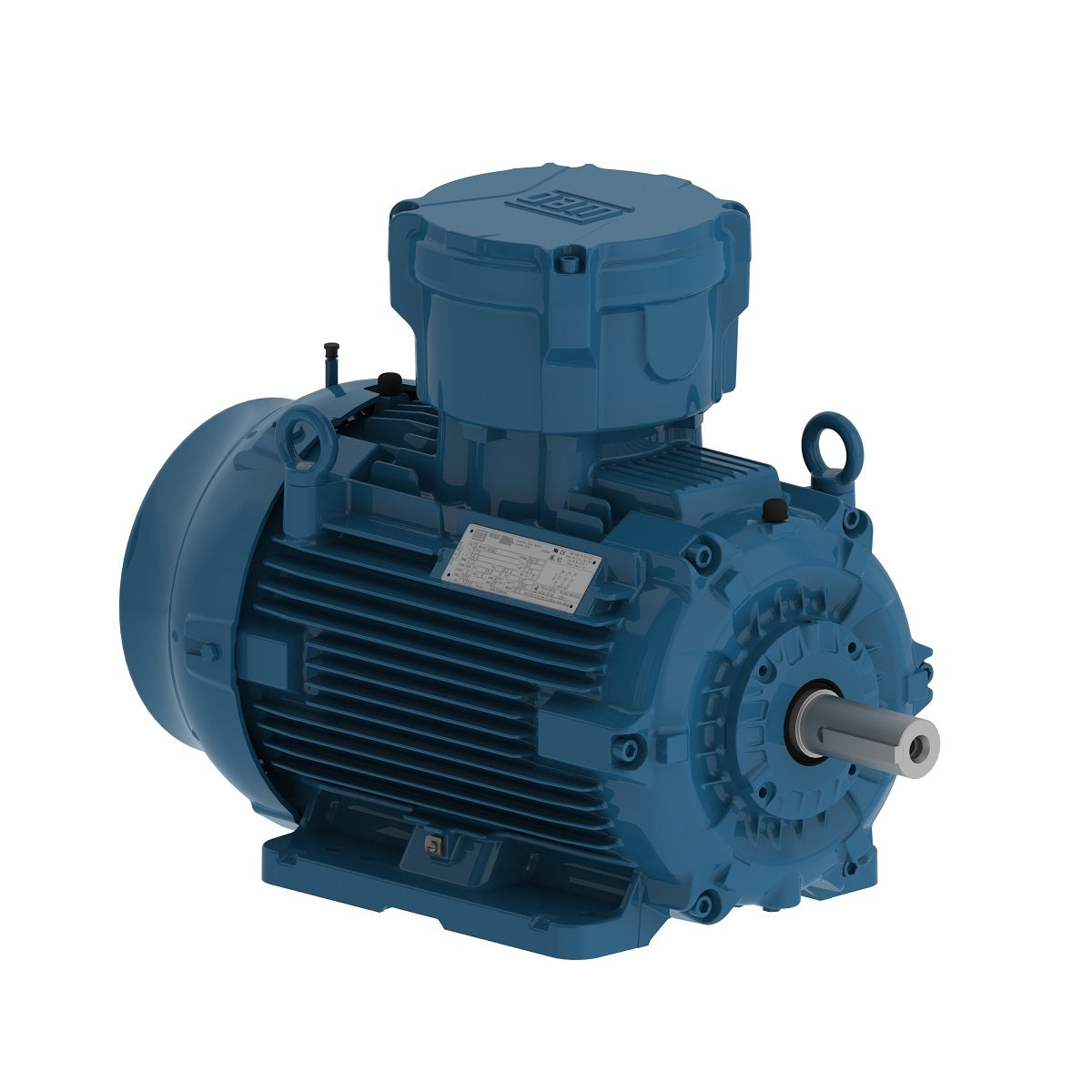

Weg Electric E02212XP3YAX200LF3-W, 30 HP, 200M/L Frame, 1000 RPM, 380-415/660//460 Vac, TEFC, 3 PH, Foot-mounted, W22Xdb IE2.

E02212XP3YAX200LF3-W, 30 HP, 200M/L Frame, 1000 RPM, 380-415/660//460 Vac, TEFC, 3 PH, Foot-mounted, W22Xdb IE2.

Engineering Data

Standard IEC 60034-1
Frequency 50 Hz
Voltage 380-415/660//460 V
Number of poles 6
Degree of Protection IP56
Synchronous speed 1000 rpm
Output rating 22 kW
Mounting Foot-mounted
Flange Without
Mounting B3T
Terminal box¹ Top
Enclosure IC411 - TEFC

Frame 200M/L
Output 22 kW (30 HP)
Number of Poles 6
Frequency 50 Hz
Rated speed 975 rpm
Slip 2.50 %
Rated voltage 400/690 V
Rated current 42.3/24.5 A
L. R. Amperes 254/147 A
LRC 6.0
No load current 20.0/11.6 A
Rated torque 159 ft.lb
Locked rotor torque 220 %
Breakdown torque 270 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 9.58 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP56
Enclosure IC411 - TEFC
Mounting B3T
Rotation¹ Both (CW and CCW)
Noise level² 60.0 dB(A)
