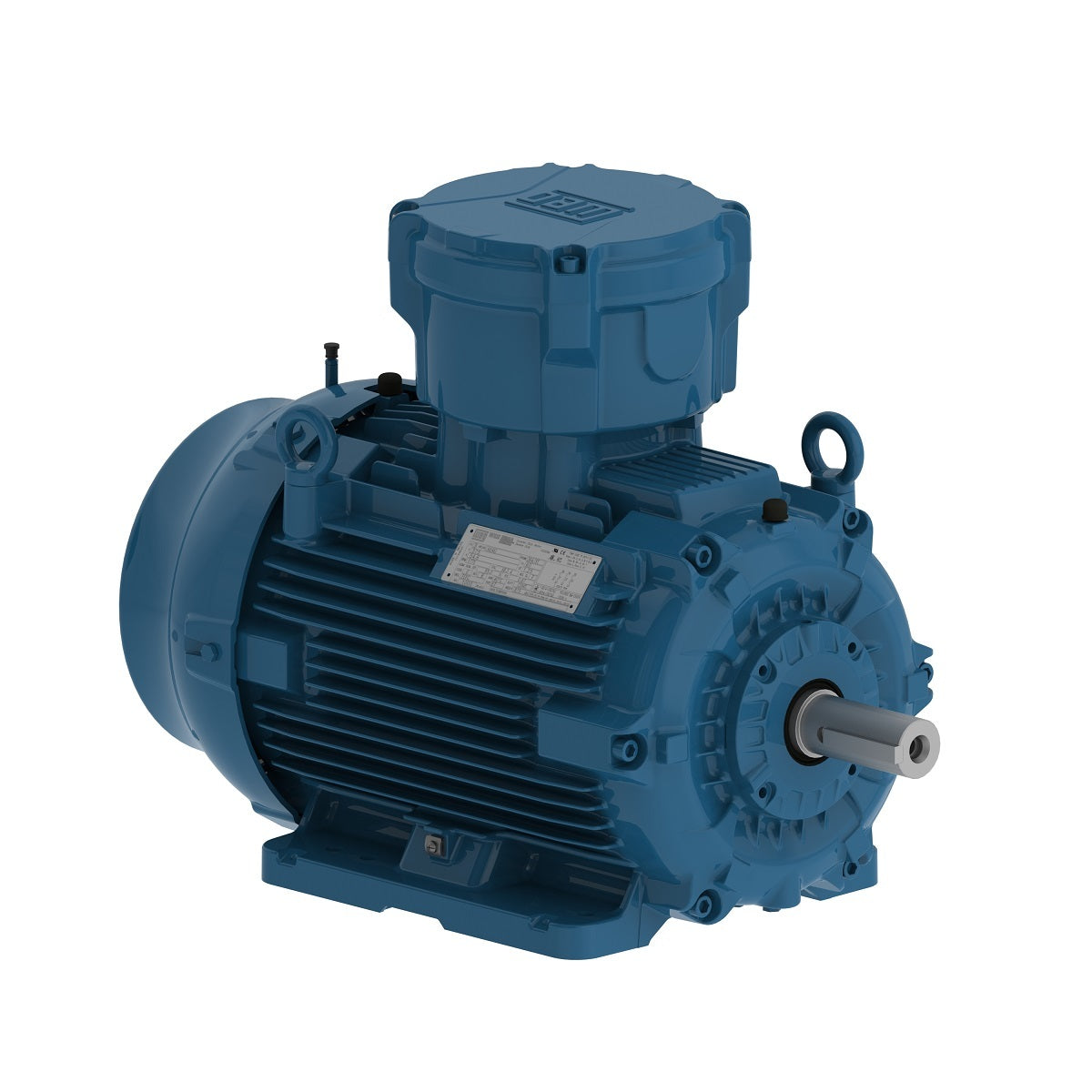

Weg Electric E03018XP3YAX200LF3-W, 40 Hp, 200M/L Frame,1500 RPM, 380-415/660//460 Vac, TEFC, 3 PH, Foot-mounted, W22Xdb IE2.

E03018XP3YAX200LF3-W, 40 Hp, 200M/L Frame,1500 RPM, 380-415/660//460 Vac, TEFC, 3 PH, Foot-mounted, W22Xdb IE2.

Engineering Data

Standard IEC 60034-1
Frequency 50 Hz
Voltage 380-415/660//460 V
Number of poles 4
Degree of Protection IP56
Synchronous speed 1500 rpm
Output rating 30 kW
Mounting Foot-mounted
Flange Without
Mounting B3T
Terminal box¹ Top
Enclosure IC411 - TEFC

Frame 200M/L
Output 30 kW (40 HP)
Number of Poles 4
Frequency 50 Hz
Rated speed 1475 rpm
Slip 1.67 %
Rated voltage 400/690 V
Rated current 57.9/33.6 A
L. R. Amperes 365/211 A
LRC 6.3
No load current 24.0/13.9 A
Rated torque 143 ft.lb
Locked rotor torque 229 %
Breakdown torque 260 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 6.90 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP56
Enclosure IC411 - TEFC
Mounting B3T
Rotation¹ Both (CW and CCW)
Noise level² 65.0 dB(A)
