Industrial Motors

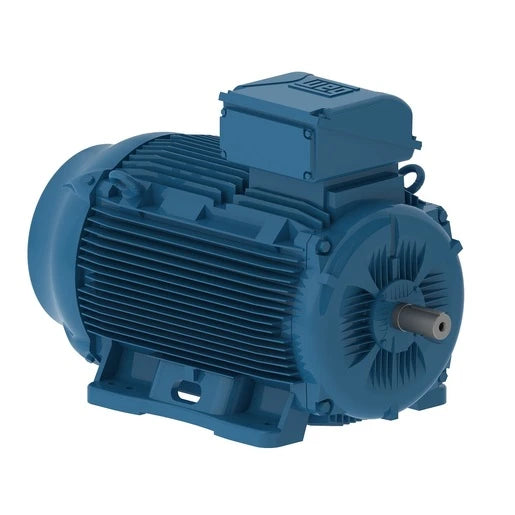

Weg Electric, E04512EP3Y280SMF3-W2, 45 kW, 280S/M FR, 3Ph, 380-400-415/660-690//460 V, 50 Hz, 1000 RPM, TEFC, W22 IE2, 14420929

Weg Electric, E04512EP3Y280SMF3-W2, 45 kW, 280S/M FR, 3Ph, 380-400-415/660-690//460 V, 50 Hz, 1000 RPM, TEFC, W22 IE2, 14420929

$8,605.41
$8,605.41
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric, E04512EP3Y280SMF3-W2, 45 kW, 280S/M FR, 3Ph, 380-400-415/660-690//460 V, 50 Hz, 1000 RPM, TEFC, W22 IE2, 14420929

SPECIFICATIONS

Standard IEC 60034-1
Frequency 50 Hz
Voltage 380-400-415/660-690//460 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1000 rpm
Output rating 45 kW
Mounting Foot-mounted
Flange Without
Mounting B3T
Terminal box¹ Top
Enclosure IC411 - TEFC
