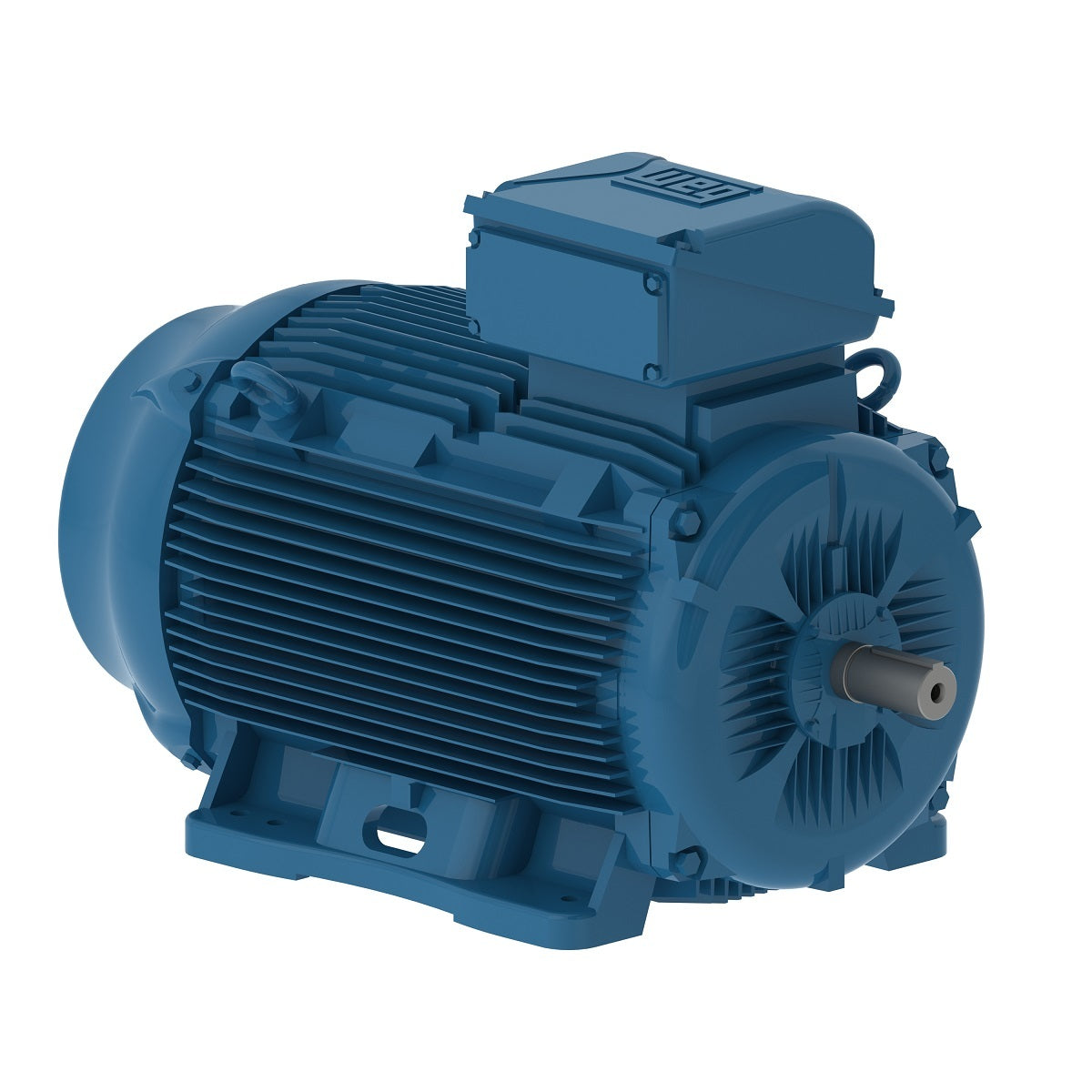

Weg Electric E07536ET3YAX280SMF3W, 100 Hp, 280S/M Frame, 3000 RPM, 380-415/660//440-460 Vac, TEFC, 3 PH, Foot-mounted, W22Xec IE3.

E07536ET3YAX280SMF3W, 100 Hp, 280S/M Frame, 3000 RPM, 380-415/660//440-460 Vac, TEFC, 3 PH, Foot-mounted, W22Xec IE3.

Engineering Data

The W22Xec motor offer safety and reliability for operation in a great variety of applications that require a non-incendive motor (Zone 2). It provides safety and complies with efficiency level specified by IEC 60034-30-1. It meets the requirements of installations where the flammable mixture is not often present, but may present risks.

Product features
Standard IEC 60034-1
Frequency 50 Hz
Voltage 380-415/660//440-460 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3000 rpm
Output rating 75 kW
Mounting Foot-mounted
Flange Without
Mounting B3T
Terminal box¹ Top
Enclosure IC411 - TEFC

Frame 280S/M
Output 75 kW (100 HP)
Number of Poles 2
Frequency 50 Hz
Rated speed 2979 rpm
Slip 0.70 %
Rated voltage 400/690 V
Rated current 133/77.1 A
L. R. Amperes 984/571 A
LRC 7.4
No load current 44.0/25.5 A
Rated torque 177 ft.lb
Locked rotor torque 200 %
Breakdown torque 310 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 22.3 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3T
Rotation¹ Both (CW and CCW)
Noise level² 77.0 dB(A)
