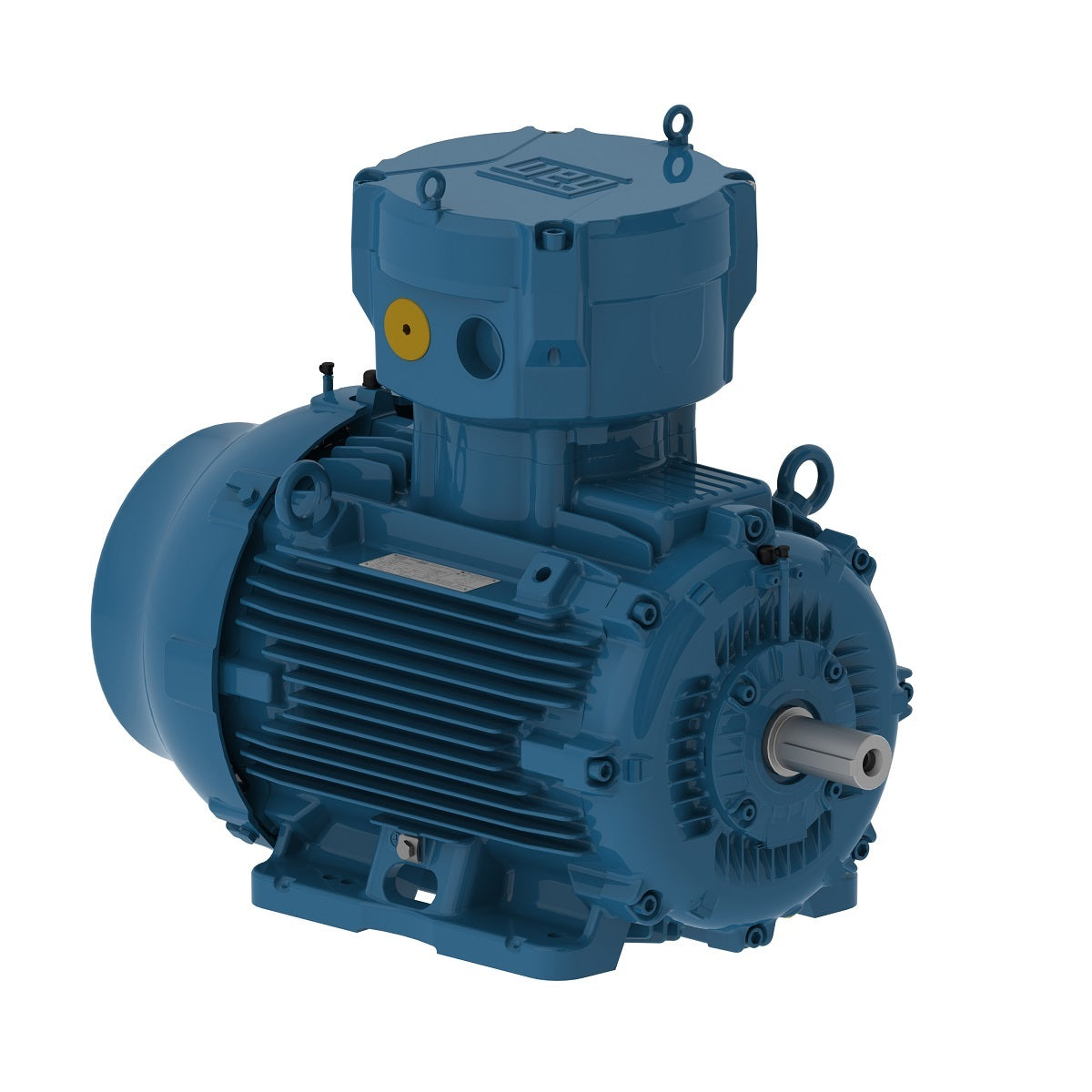

Weg Electric E09036XP3YAX280SMF3W, 125 Hp, 280S/M Frame, 3000 RPM, 380-415/660//460 Vac, TEFC, 3 PH, Foot-mounted, W22Xdb IE2.

E09036XP3YAX280SMF3W, 125 Hp, 280S/M Frame, 3000 RPM, 380-415/660//460 Vac, TEFC, 3 PH, Foot-mounted, W22Xdb IE2.

Engineering Data

Standard IEC 60034-1
Frequency 50 Hz
Voltage 380-415/660//460 V
Number of poles 2
Degree of Protection IP56
Synchronous speed 3000 rpm
Output rating 90 kW
Mounting Foot-mounted
Flange Without
Mounting B3T
Terminal box¹ Top
Enclosure IC411 - TEFC

Frame 280S/M
Output 90 kW (125 HP)
Number of Poles 2
Frequency 50 Hz
Rated speed 2977 rpm
Slip 0.77 %
Rated voltage 400/690 V
Rated current 158/91.6 A
L. R. Amperes 1185/687 A
LRC 7.5
No load current 47.0/27.2 A
Rated torque 213 ft.lb
Locked rotor torque 200 %
Breakdown torque 280 %
Locked rotor time 45s (cold) 25s (hot)
Moment of inertia (J) 22.3 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP56
Enclosure IC411 - TEFC
Mounting B3T
Rotation¹ Both (CW and CCW)
Noise level² 77.0 dB(A)
