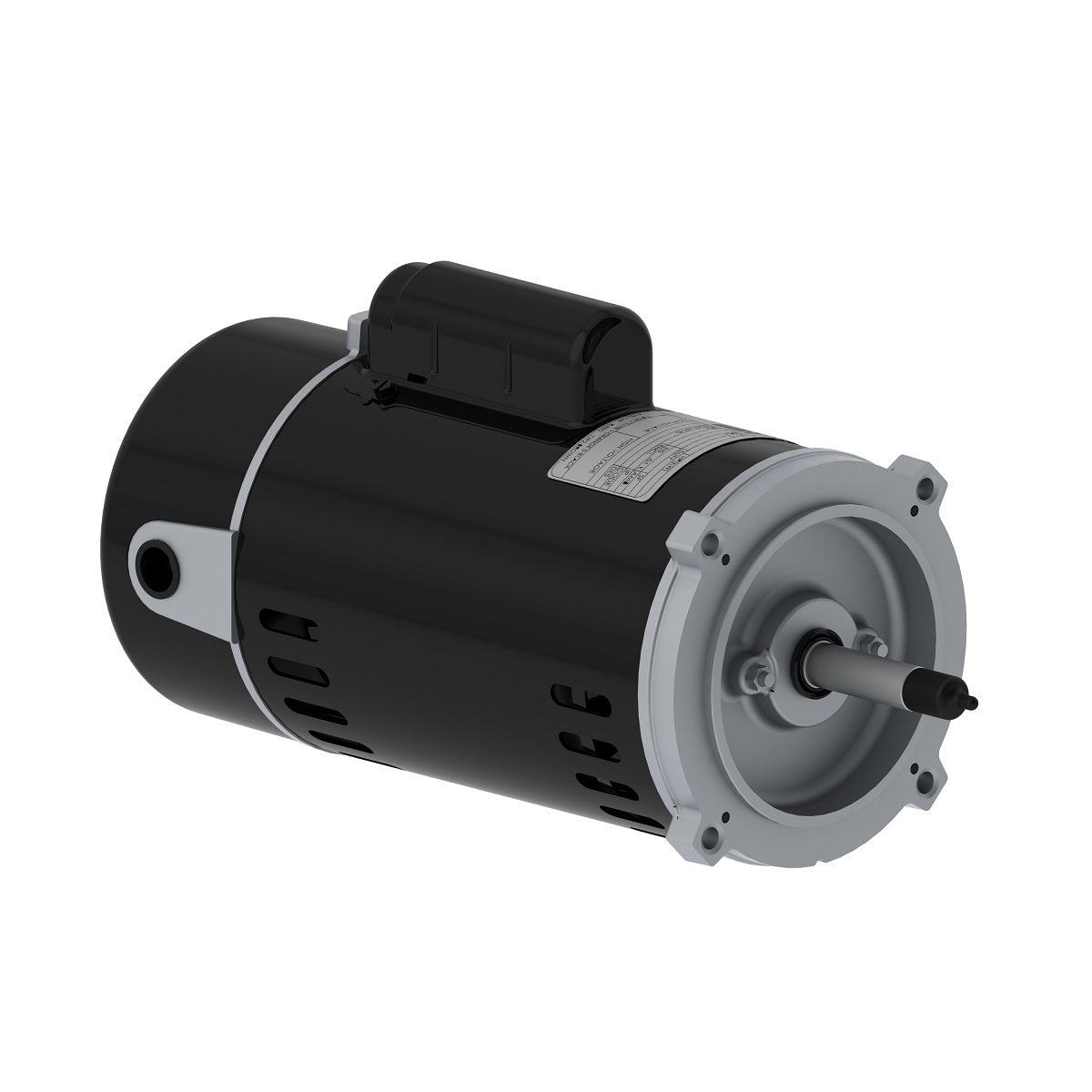

Weg Electric PCJ120, 2 Hp, M56J Frame, 3600 RPM, 230 Vac, ODP, 1 PH, Footless, Pool Spa Pump Start Capacitor.

PCJ120, 2 Hp, M56J Frame, 3600 RPM, 230 Vac, ODP, 1 PH, Footless, Pool Spa Pump Start Capacitor.

Engineering Data

ODP motor manufactured with steel plate especially developed for applications on swimming pool, Japanese bathtub and whirlpool bathtub pumps.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 230 V
Number of poles 2
Degree of Protection IP21
Synchronous speed 3600 rpm
Output rating 2 HP
Mounting Footless
Flange FC 149
Mounting F-1
Terminal box¹ Without Terminal Box
Enclosure IC01 - ODP

Frame M56J
Output 2 HP (1.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3460 rpm
Slip 3.89 %
Rated voltage 230 V
Rated current 9.30 A
L. R. Amperes 54.9 A
LRC 5.9x(Code H)
No load current 3.90 A
Rated torque 3.04 ft.lb
Locked rotor torque 130 %
Breakdown torque 229 %
Locked rotor time 10s (cold) 6s (hot)
Moment of inertia (J) 0.0403 sq.ft.lb
Insulation Class B
Service factor 1.10
Temperature rise 70 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +50°C
Altitude 1000 m.a.s.l.
Degree of Protection IP21
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ CCW
Noise level² 58.0 dB(A)
