Industrial Motors

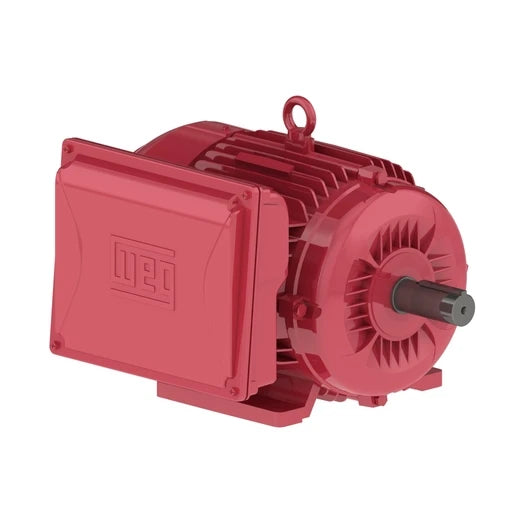

Weg Electric 00518ES1DFD215T-W22, 5 HP, 213/5T FR, 1Ph, 230 V, 60 Hz, TEFC, Foot-mounted, 14672764

Weg Electric 00518ES1DFD215T-W22, 5 HP, 213/5T FR, 1Ph, 230 V, 60 Hz, TEFC, Foot-mounted, 14672764

$1,072.45
$1,072.45
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric 00518ES1DFD215T-W22, 5 HP, 213/5T FR, 1Ph, 230 V, 60 Hz, TEFC, Foot-mounted, 14672764

SPECIFICATIONS

Frame 213/5T
Output 5 HP (3.7 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1750 rpm
Slip 2.78 %
Rated voltage 230 V
Rated current 21.3 A
L. R. Amperes 155 A
LRC 7.3x(Code J)
No load current 8.80 A
Rated torque 15.0 ft.lb
Locked rotor torque 370 %
Breakdown torque 250 %
Locked rotor time 10s (cold) 6s (hot)
Moment of inertia (J) 0.7124 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 105 K
Starting Method Direct On Line
Duty Cycle Cont.(S1)
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 149 lb
