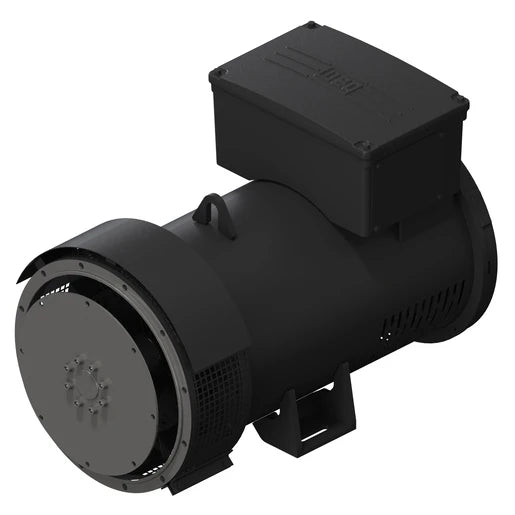

Weg Electric W8612.000, PARALLEL OPERATION, IP23, 1800 rpm, 207A, 14417829

Weg Electric W8612.000, PARALLEL OPERATION, IP23, 1800 rpm, 207A, 14417829

$596.74
$596.74
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric W8612.000, PARALLEL OPERATION, IP23, 1800 rpm, 207A, 14417829

SPECIFICATIONS

Degree of Protection IP23
Cooling IC01
Excitation System Brushless with Auxiliary Coil
Mounting B15T
Coupling disc SAE 11,5
Flange Type SAE 3
Type of Pole Salient
Insulation Class 180°C (H)
Frame (IEC) 200.0
Painting Plan 207A
Operation mode PARALLEL OPERATION
Finish Color MATTE BLACK
Voltage Regulator Inside of main terminal box
Standard IEC/NEMA
Application Industrial Environment
Model GTA201FIHV
THD (L-L, no load) ≤ 3%
Altitude up to 1000 m.a.s.l
Stator winding pitch 2/3
Number of Leads 6
Power Factor 0.8 to 1.0
Number of poles 4
Rated speed - 60 Hz 1800 rpm
Overspeed 2250 rpm
Approx. weight 245 kg
