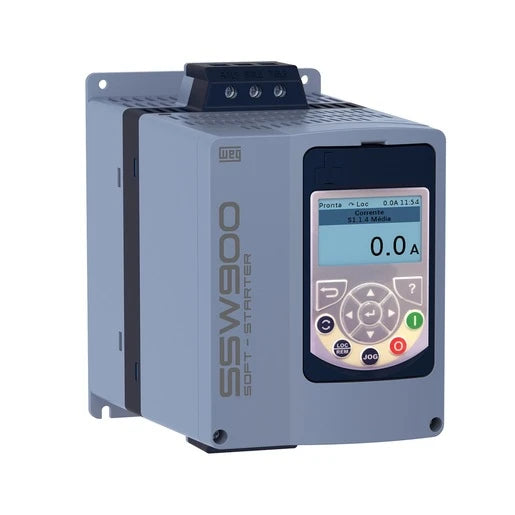

WEG SSW900B0105T5E2B, Soft Starter, 105A, 220-575V, IP20, 15824815

WEG SSW900B0105T5E2B, Soft Starter, 105A, 220-575V, IP20, 15824815

$2,325.76
$2,325.76
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

WEG SSW900B0105T5E2B, Soft Starter, 105A, 220-575V, IP20, 15824815

Specifications

Manufacturer Part Number SSW900B0105T5E2B
Manufacturer WEG Electric
Family Series WEG Electric Soft Starters
Description Soft Starter, 3 Phase, 105 Amp, 230/460/575VAC, 40/75/100hp, Frame B, 8.2H x 5.7W x 10.2D”, Protected Chassis Enclosure, IP20.
Voltage 110-240 VAC
Nominal Voltage 120 VAC, 208 VAC, 240 VAC
AC Voltage 220-575 VAC
Current Rating 105 A
Operating Temperature 32-131 °F
Bypass Yes
Capacity 300% for 30 Seconds 10 Starts Per Hour
Overload Protection Yes
Enclosure No
Connection Type In-Line
Communication CAN, DeviceNet, Ethernet IP, ModBus RTU, Modbus TCP, Profibus, Profinet, RS-485
Protection Rating IP00
Approvals CE, cULus
Net Weight 10.61 lbs
Gross Weight 10.61 lbs
