Industrial Motors

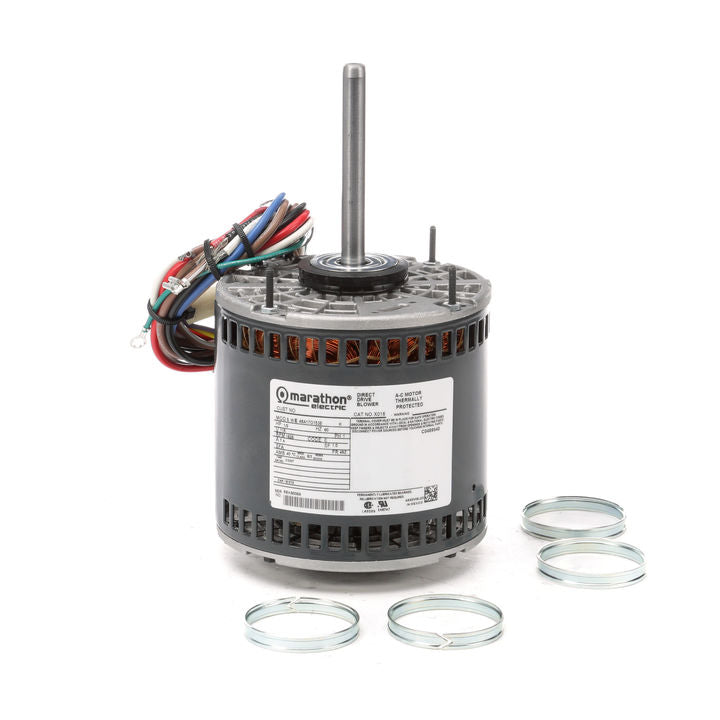

Marathon Electric X016, 1/2 Hp, 48Y FR, 1625/3 Rpm, 115 Vac, 1 PH, Open Air Over, Resilient Ring, Thru-Bolt Mount, Fan Blower-Direct Drive, PSC, 48A178O153

Marathon Electric X016, 1/2 Hp, 48Y FR, 1625/3 Rpm, 115 Vac, 1 PH, Open Air Over, Resilient Ring, Thru-Bolt Mount, Fan Blower-Direct Drive, PSC, 48A178O153

$442.00
$442.00
Sale Sold out
Shipping calculated at checkout.

X016, 1/2 Hp, 48Y FR, 1625/3 Rpm, 115 Vac, 1 PH, Open Air Over, Resilient Ring, Thru-Bolt Mount, Fan Blower-Direct Drive, PSC, 48A178O153.

Engineering Data

60 Hertz
HP 1/2
Voltage 115
kW 0.37
FL Amps 7.4
RPM 1625
FL Eff N/A % SF 1.0

Phase 1
Insulation Class B
Frame 48Y
Duty CONTINUOUS AOM
Enclosure OPAO
Ambient 40
Mounting Resilient Rings - Extended Studs
NEMA Design NO DESIGN CODE
Orientation HORIZONTAL
Starting Type PSC 3 SPEED
Assembly F1 ONLY KVA Code C
Drive End Bearing BALL IP Code 10
Opposite End Bearing BALL
Drive End Bearing Size 6203
Rotation SELECTIVE CCW
Opposite End Bearing Size 6203
Weight 16 LB lbs
CE N CSA Y
UL Recognized Construction and Protector
Thermal Protection Automatic Protector (under locked rotor only)
