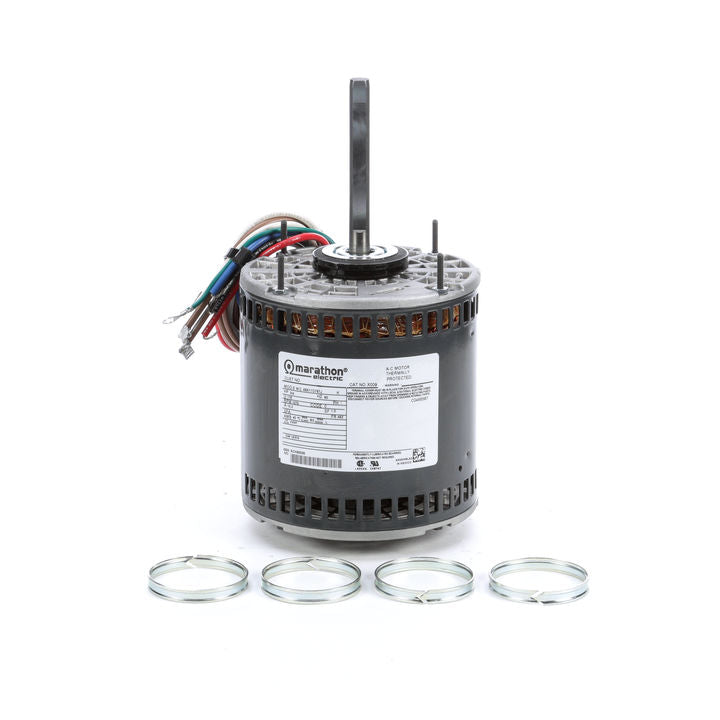

Marathon Electric X1009, 3/4 Hp, 1075/3 Rpm, 48Y FR, 115 Vac, 1 PH, OPAO. Resilient Ring, Extended Stud, 48A11O787

** This motor has been replaced by Model# X009**
X1009, 3/4 Hp, 1075/3 Rpm, 48Y FR, 115 Vac, 1 PH, OPAO. Resilient Ring, Extended Stud, 48A11O787.

General Specifications

Model : 048A11OB787Catalog No : X1009Part Description : Replaced by 048A11O787......3/4,1075,OPEN,48Y,1/60/115Category : Direct DriveStock : No
Nameplate Specifications
Output HP : .75 HpOutput KW : 0.56 kWFrequency : 60 HzVoltage : 115 VCurrent : 10.2 ASpeed : 1075 rpmService Factor : 1 Phase : 1 Duty : CONTINUOUS Insulation Class : B Design Code : NO DESIGN CODE KVA Code : C Frame : 48Y Enclosure : OPAO Overload Protector : AUT LCK RTR ONLY Ambient Temperature : 40 °CDrive End Bearing Size : NONE Opp Drive End Bearing Size : NONE UL : Recognized CSA : Y CE : N IP Code : 01
Technical Specifications
Electrical Type : PSC 3 SPEED Starting Method : ACROSS THE LINE Poles : 6 Rotation : SELECTIVE CCW Mounting : RESILIENT RING-EXTENDED STUDS Motor Orientation : HORIZONTAL Drive End Bearing : SLEEVE Opp Drive End Bearing : SLEEVE Frame Material : ROLLED STEEL Shaft Type : SGL SPL EXT Assembly/Box Mounting : F1 ONLY Weight : 20.00 LB
