Industrial Motors

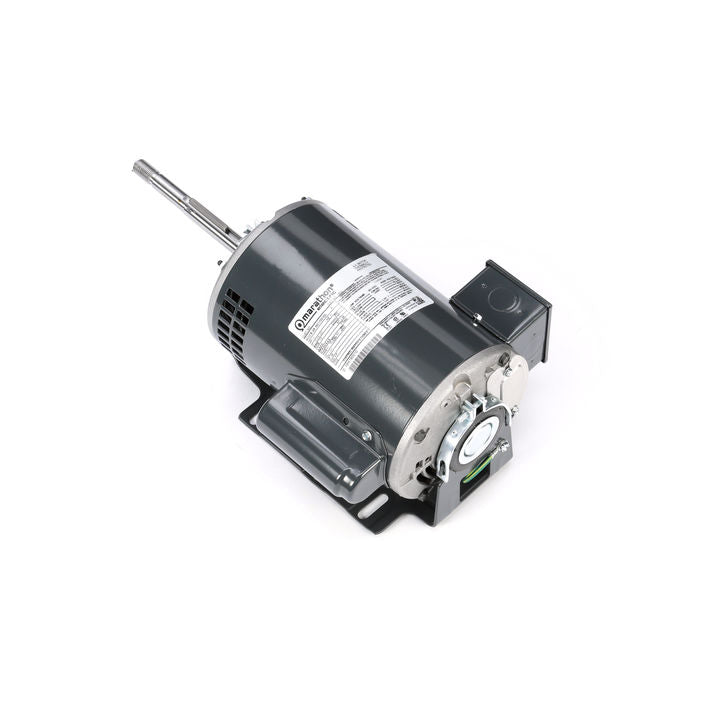

Marathon Electric X608, 56T17D3319, 3/4 Hp,1725 Rpm, 56Z FR, 230/460 Vac 3 PH, Commercial Laundry Dryer, Dripproof, Resilient Base

Marathon Electric X608, 56T17D3319, 3/4 Hp,1725 Rpm, 56Z FR, 230/460 Vac 3 PH, Commercial Laundry Dryer, Dripproof, Resilient Base

$722.00
$722.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$722.00 $685.90
Sale

X608, 56T17D3319, 3/4 Hp,1725 Rpm, 56Z FR, 230/460 Vac 3 PH, Commercial Laundry Dryer, Dripproof, Resilient Base.

Engineering Data

60 Hertz
HP 3/4 Voltage 230/460
kW .56 FL Amps 2.4/1.2
RPM 1800
FL Eff N/A % SF 1.25

50 Hertz
HP 3/4 Voltage 190-230/380
kW .56 FL Amps 2.8-2.8/1.4
RPM 1500
FL Eff N/A % SF 1.0

Phase 3 Insulation Class B
Frame 56Z Duty CONTINUOUS
Enclosure DP Ambient 40
Mounting Resilient Base NEMA Design B
Orientation HORIZONTAL Starting Type ACROSS THE LINE
Assembly F1 ONLY KVA Code K
Drive End Bearing BALL IP Code 22
Opposite End Bearing BALL
Drive End Bearing Size N/A
Opposite End Bearing Size N/A
Weight 29 LB lbs
CE N/A CSA Y
UL Recognized Construction and Protector
Thermal Protection Automatic Protector
