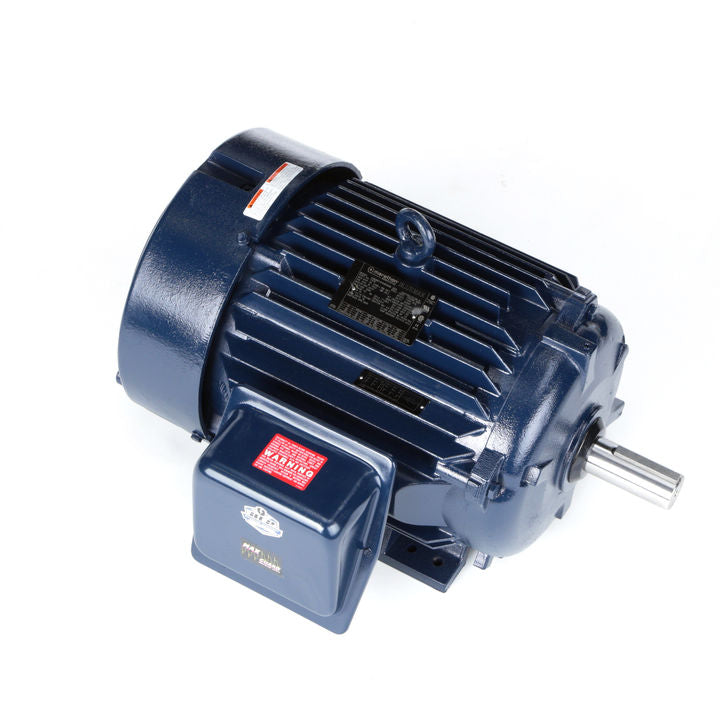

Marathon Electric Y570, 30 Hp, 1800 Rpm, 286T FR, 230/460 V, TEFC, Rigid Base, Inverter Duty, Blue Max 2000, 286THFNA8028.

Y570, 30 Hp, 1800 Rpm, 286T FR, 230/460 V, TEFC, Rigid Base, Inverter Duty, Blue Max 2000, 286THFNA8028.

Engineering Data

Output HP :30 HP
Output KW :22.4 kW
Frequency :60 Hz
Voltage :230/460 V
Current :77.0/38.5 A
Speed :1776 RPM
Service Factor :1
Phase :3
Efficiency :93 %
Duty :Continous
Insulation Class :H
Design Code :INV
KVA Code :J
Frame :286T
Enclosure :Totally Enclosed Fan Cooled
Overload Protector :No
Ambient Temperature :40 °C
Drive End Bearing Size :6311
Opp Drive End Bearing Size :6210
UL :Recognized
CSA :Y
CE :YIP Code :43
Technical Specifications
Electrical Type :Squirrel Cage Inverter Duty
Starting Method :Inverter Only
Poles :4
Rotation :Reversible
Mounting :Rigid Base
Motor Orientation :Horizontal
Drive End Bearing :Ball
Opp Drive End Bearing :Ball
Frame Material :Cast Iron
Shaft Type :T
Overall Length :29.91 in
Frame Length :14.25 in
Shaft Diameter :1.875 in
Shaft Extension :4.81 in
Assembly/Box Mounting :F1/F2 Capable
UPC :722856025234
