Industrial Motors

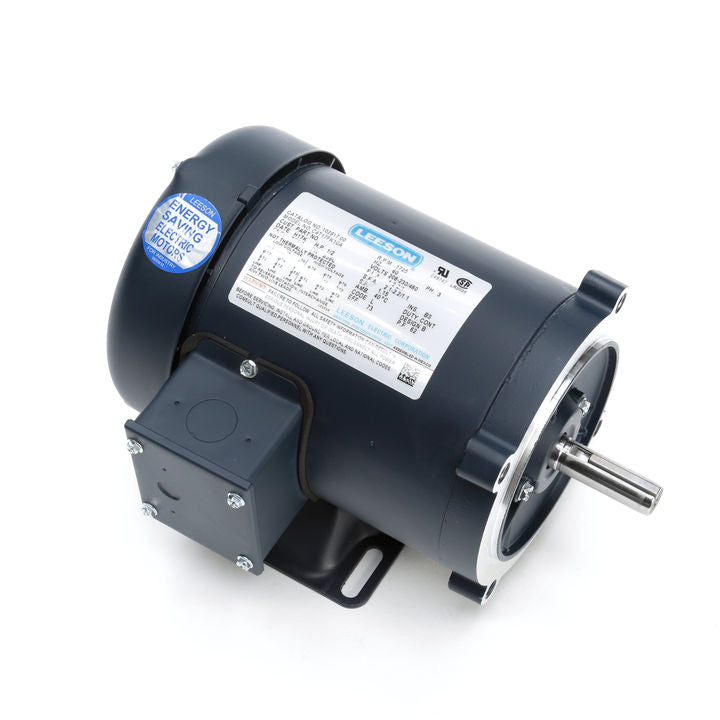

Leeson Electric 102917.00, 1/2 HP, 1800 RPM, 56C FR, TEFC, 208-230/460 Vac, 3 PH, C-Face with Base, General Purpose

Leeson Electric 102917.00, 1/2 HP, 1800 RPM, 56C FR, TEFC, 208-230/460 Vac, 3 PH, C-Face with Base, General Purpose

$608.00
$608.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
Featured Products is no longer manufacturing this motor, possible replacement is the following Featured Products part# K1324

**This motor has been replaced by model# K1324**
102917.00, 1/2 HP, 1800 RPM, 56C FR, TEFC, 208-230/460 Vac, 3 PH, C-Face with Base, General Purpose.

Engineering Data

Volts 208-230 / 460 Vac
FL Amps 1.9-2 / 1
SF Amps 2.1-2.2
SF Amps 1.1
SF Amps
RPM 1800
Hertz 60
HP 1/2
Duty CONTINUOUS
Type TF
KW 0.37
SF 1.15
Phase 3
Frame S56C
Design B
KVA Code L
Ambient 40
Protection NOT
Therm.Prot.
Insulation Class B
Eff(75%)
PF 62
Eff(100%) 73
CSA Y
Bearing OPE 6203
UL Y-(LEESON UL REC)
CE N
Bearing PE 6203
CC Number NONE
Inverter Type
Speed Range NONE
Load Type
Motor Wt. 20 LB
Enclosure TEFC
Lubrication VERIFY
Nameplate A-92005-4
Mounting RIGID

Rotation REV

Shaft Diam. 5/8 IN
Cust Part No.
Packaging B
Winding TE48415
Carton Label
Leeson Gen Purpose
Group 3

Iris
Paint BLUE - LEESON (ENAMEL)
Hazardous Location NONE
