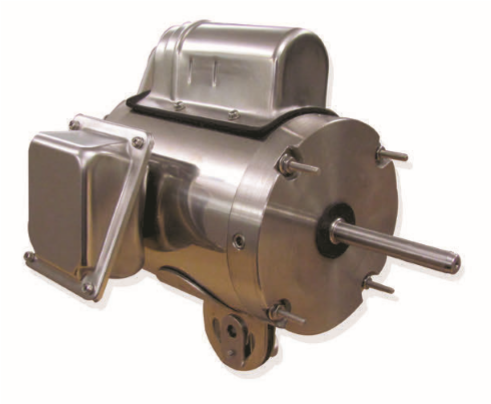

191546.00, 1/3 Hp, 1075 Rpm, 48Y FR, 115/230 Vac, 1 PH, TEFC, C-Face with Base, Stainless Steel Pedestal Fan Motors

191546.00, 1/3 Hp, 1075 Rpm, 48Y FR, 115/230 Vac, 1 PH, TEFC, C-Face with Base, Stainless Steel Pedestal Fan Motors.

Engineering Data
Volts 115 Volts 230 Volts
F.L. Amps 4.0 F.L. Amps 2.0 F.L. Amps
S. F Amps S. F Amps S. F Amps

RPM 1115 Hertz 60
HP 1/3 Duty AIROVER TYPE PN
KW .246
Frame 48YZ Serv. Factor 1.0 Phase 1
Max Amb 40 Design NO DESIGN CODE Code A
Insul Class F Protection AUTOMATIC Therm.Prot.
Eff 100% 57.5 Eff 75% PF 96
UL Yes CSA Yes Bearing OPE 6203
CC Number EXEMPT CE No Bearing PE 6203
Load Type Inverter Type Speed Range NONE

Motor Wt. 21.6 LB Enclosure TENV Lubrication POLYREX EM
Nameplate Mounting ROUND-EXTENDED STUDS Rotation SELECTIVE CW
Assembly Shaft Dia. 1/2 IN Ext. Diag. N/A
Cust Part No Outline OL19154600 Ext. Diag2
Packaging INDIVIDUAL Outline Dash No Winding QP55616
Carton Label GROUP : 3
Iris Paint NO PAINT Test Card

Form Factor RMS Amps Const Torque Speed Range
Torque Peak
AB Code Peak@DegC
Resistance
Connection

Rework Status Rework TYPE

Hazardous Loc NONE Brake Motors
Explosion Proof Temp Op Code FORCE
Class GROUP : VDC
Class GROUP : ADC
Brake Coil OHMs @25 C

Performance
Torque UOM OZ-FT Inertia (WK²) 0
Torque 25.24(Full Load) 32.9(Break Down) 11(Pull Up) 9.1(Locked Rotor)
CURRENT (amps) 2(Full Load) 3(Break Down) 4.3(Pull Up) 4.3(Locked Rotor)
Efficiency (%) 0(Full Load) 57.1(75% Load) 57.7(50% Load) 49.1(25% Load)
PowerFactor 1(Full Load) 118.5(75% Load) 164.5(50% Load) 240.3(25% Load)

Load Curve Data @60 Hz , NONE Volts , 1/3 Horsepower
Load Amps KW2 RPM Torque EFF PF Rise By Resis Frame Rise
0.0 0.89 0.0 0 0.0 0.0 0.0 0.0 -
0.25 1.1 0.608 981 34.3 49.1 240.3 0.0 -
0.5 1.3 0.492 1084 29.5 57.7 164.5 0.0 -
0.75 1.6 0.436 1112 25.2 57.1 118.5 0.0 -
1.0 2.0 0.362 1141 18.5 51.8 78.7 0.0 -
1.25 3.1 0.242 1177 5.9 25.5 33.9 0.0 -
1.5 - 0.203 1187 1.5 7.8 0.0 0.0 -
1.15 2.3 0.3 1161 12.2 41.9 56.7 0.0 -
