Industrial Motors

Baldor Electric GM3303, 1/2 Hp, 208-230/460 Vac, 88 Rpm, 20:1, 200 Lb-in., 3320M-JH Frame, 3 Phase Input, Right Angle AC Gearmotor

Baldor Electric GM3303, 1/2 Hp, 208-230/460 Vac, 88 Rpm, 20:1, 200 Lb-in., 3320M-JH Frame, 3 Phase Input, Right Angle AC Gearmotor

$873.00
$873.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
Bodine Electric Motors is no longer manufacturing this motor, possible replacement is the following Bodine Electric Motors part# 2872

**This motor is no loger available, Possible replacement is Bodine Model# 2872**
GM3303, 1/2 Hp, 208-230/460 Vac, 88 Rpm, 20:1, 200 Lb-in., 3320M-JH Frame, 3 Phase Input, Right Angle AC Gearmotor

Engineering Data

Enclosure TEFC
Frequency 60.00 Hz
Gear Ratio 20:1
Gear Style JH
Gearhead Type RIGHT ANGLE
Number of Poles 4
Output Speed 87 rpm
Output Torque 200.00 lb-in
Phase 3
Speed 1725 rpm
Voltage 208 V
230 V
460 V
Connection Diagram CD0005A05
Design Code B

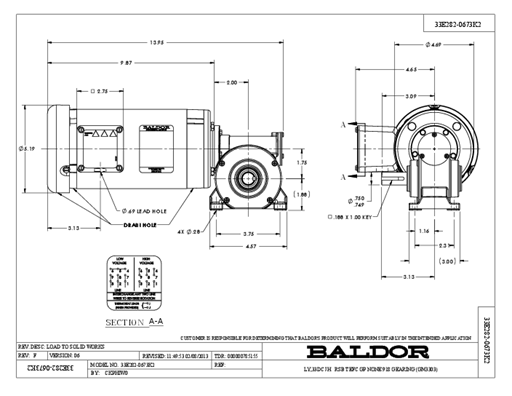

Dimensional Drawing Numbers 33E282-0673K2
Duty Rating CONT
Frame Material Steel
Insulation Class B

View full details
