Industrial Motors

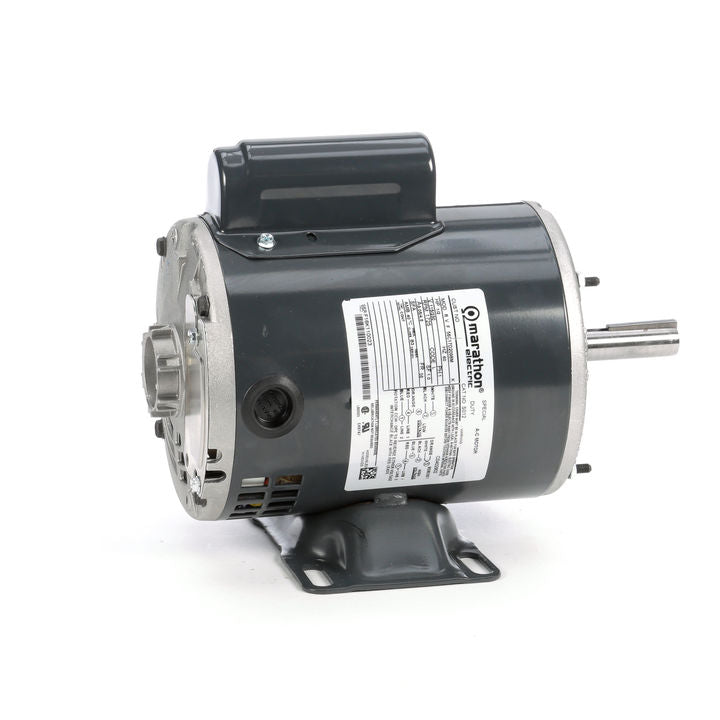

Marathon Electric C1904, 5KCR49ZN0564Y, 2 Hp, 1800 Rpm, 145T FR, 208-230 Vac, 1 PH, TEFC, Rigid Base, Farm Duty/ High Torque Motor

Marathon Electric C1904, 5KCR49ZN0564Y, 2 Hp, 1800 Rpm, 145T FR, 208-230 Vac, 1 PH, TEFC, Rigid Base, Farm Duty/ High Torque Motor

$550.00
$550.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$550.00 $522.50
Sale
Featured Products is no longer manufacturing this motor, possible replacement is the following Featured Products part# Z128

**This motor has been replaced by Model# Z128**
C1904, 5KCR49ZN0564Y, 2 Hp, 1800 Rpm, 145T FR, 208-230 Vac, 1 PH, TEFC, Rigid Base, Farm Duty/ High Torque Motor

Engineering Data

60 Hertz
HP 2 Voltage 208-230
kW N/A FL Amps 9.2
RPM 1725
FL Eff 0 % SF 1.0

Phase 1 Insulation Class F
Frame 145T Duty Continuous
Enclosure TEFC Ambient 40
Mounting WB NEMA Design N/A
Orientation Horizontal or Vertical Starting Type Switch and Mech
Assembly N/A KVA Code K
Drive End Bearing BALL IP Code N/A
Opposite End Bearing BALL
Drive End Bearing Size 25MM Rotation Select Counter clockwise
Opposite End Bearing Size 17MM Hazardous Location N/R
Weight 49 LB lbs
CE N/A CSA Y

UL Y
Thermal Protection Manual

View full details

Attachments
