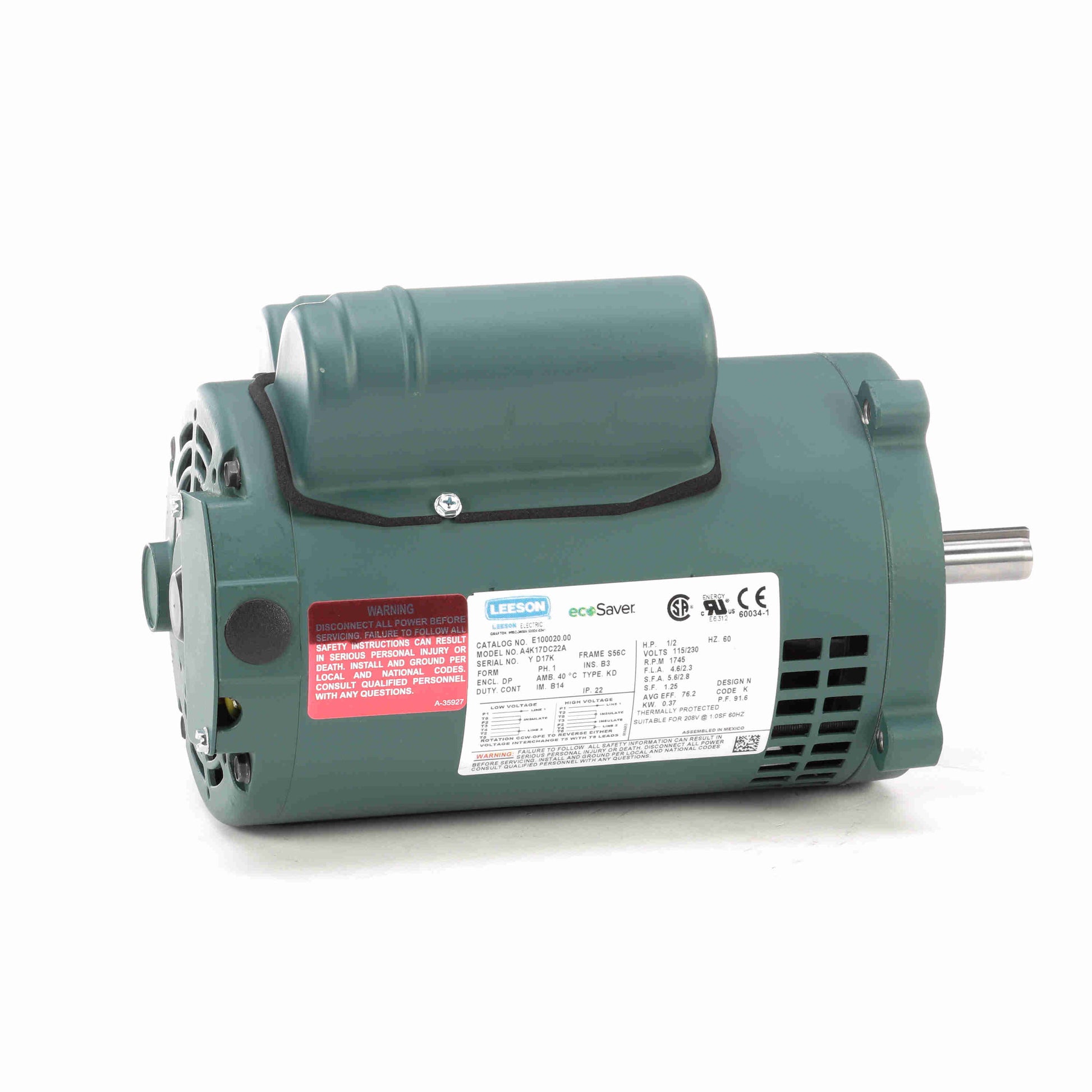

Leeson Electric E100020.00, 1/2 HP, 1800 RPM, S56C FR, DP, 115/208-230 Vac, 1 PH, C Face Less Base, General Purpose

**This motor is no longer available, possible replacement is model# E100019.00**
E100020.00, 1/2 HP, 1800 RPM, S56C FR, DP, 115/208-230 Vac, 1 PH, C Face Less Base, General Purpose

Engineering Data

Volts 115 Volts 230 Volts
F.L. Amps 4.6 F.L. Amps 2.3 F.L. Amps
S. F Amps 5.6 S. F Amps 2.8 S. F Amps
RPM 1800 Hertz 60
HP 1/2 Duty CONTINUOUS TYPE KD
KW 0.37
Frame S56C Serv. Factor 1.25 Phase 1
Max Amb 40 Design N Code K
Insul Class B Protection AUTOMATIC Therm.Prot. CEG69GV
Eff 100% 76.2 Eff 75% PF 91.6
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number EXEMPT CE Yes Bearing PE 6203
Load Type Inverter Type Speed Range NONE
Motor Wt. 23 LB Enclosure DP Lubrication MULTEMP SRL
Nameplate 92005-271 Mounting ROUND Rotation SELECTIVE CCW
Assembly Shaft Dia. Ext. Diag. 005053.40
Cust Part No Outline SS404121-750 Ext. Diag2
Packaging F Winding BE484110
Carton Label GROUP: 3
Iris Paint GREEN - LEESON WATTSAVER Test Card
Form Factor RMS Amps Const Torque Speed Range
Torque Peak
AB Code Peak@DegC
Resistance
Connection
Rework Status Rework TYPE
Hazardous Loc NONE Brake Motors
Explosion Proof Temp Op Code FORCE
Class GROUP: VDC
Class GROUP: ADC
Brake Coil OHMs @25 C
Performance
Torque UOM Inertia (WK²)
Torque
CURRENT (amps)
Efficiency (%)
PowerFactor
Speed Torque Curve @ 60 Hz, 230 Volts
Curve Point Amps Amps(%) Torque Torque(%) RPM KW PF HP
BD 7.7 335.0 60.4 248.0 1495 1.515 85.0 0.5
LR 17.7 770.0 75.6 310.0 0.0 - - 0.5
PU 16.2 704.0 75.4 309.0 0.0 - - 0.5
FL 2.3 100.0 24.4 100.0 1745 0.491 91.6 0.5
SOURCE: CALCULATED GROUP: 0
Load Curve Data @60 Hz, 230 Volts, 1/2 Horsepower
Load Amps KW RPM Torque EFF PF Rise By Resis Frame Rise
0.0 0.9 0.108 1795 0.0 0.0 51.8 0.0 -
0.25 1.1 0.196 1785 6.1 49.3 76.8 0.0 -
0.5 1.5 0.291 1775 12.2 66.0 86.1 0.0 -
0.75 1.9 0.388 1760 18.3 73.7 89.8 0.0 -
1.0 2.3 0.491 1745 24.4 76.2 91.6 25.0 -
1.15 2.6 0.556 1735 28.1 77.8 91.9 0.0 -
1.25 2.8 0.601 1730 30.5 77.9 92.3 30.0 -
1.35 3.03 0.647 1720 33.0 77.8 92.5 0.0 -
1.5 3.4 0.718 1710 36.6 77.4 92.5 0.0 -
