Industrial Motors

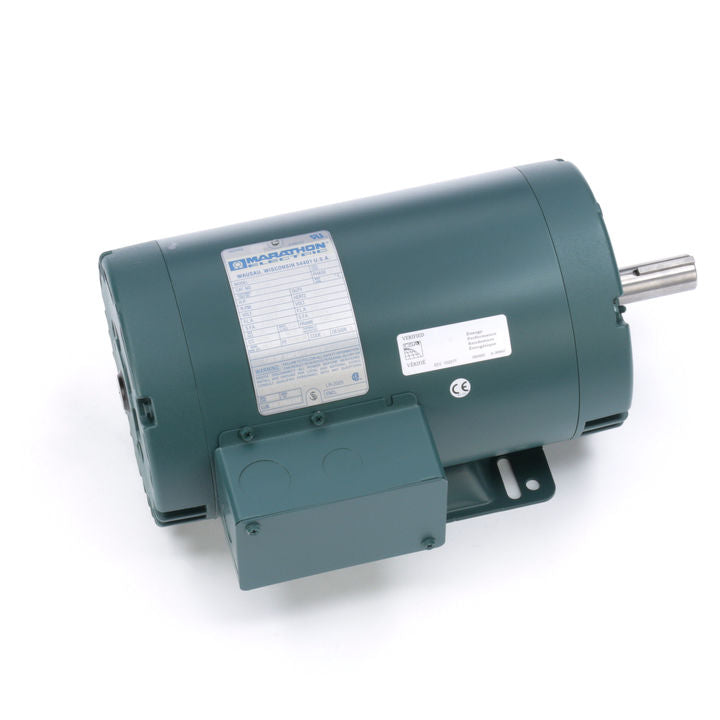

Marathon Electric E717, 2 Hp, 1800 Rpm, 145T FR, 208-230/460 Vac, 3 PH, Dripproof, Rigid Base, General Purpose, No over load, EPAct Effiencies, 145TTDR5631

Marathon Electric E717, 2 Hp, 1800 Rpm, 145T FR, 208-230/460 Vac, 3 PH, Dripproof, Rigid Base, General Purpose, No over load, EPAct Effiencies, 145TTDR5631

$879.00
$879.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$879.00 $835.05
Sale
Marathon Electric Motors is no longer manufacturing this motor, possible replacement is the following Marathon Electric Motors part# U760

** This motor has been replaced by Model# U760**
E717, 2 Hp, 1800 Rpm, 145T FR, 208-230/460 Vac, 3 PH, Dripproof, Rigid Base, General Purpose, No over load, EPAct Effiencies, 145TTDR5631.

Engineering Data

60 Hertz
HP 2 Voltage 208-230/460
kW 1.49 FL Amps 6.2-5.8/2.9
RPM 1800
FL Eff 84 % SF 1.15
50 Hertz
HP 1 1/2 Voltage 190/380
kW 1.12 FL Amps 5.4/2.7
RPM 1500
FL Eff 83 % SF 1.15


Phase 3 Insulation Class B
Frame 145T Duty CONTINUOUS
Enclosure DP Ambient 40
Mounting Rigid NEMA Design B
Orientation HORIZONTAL Starting Type ACROSS THE LINE
Assembly F1 ONLY KVA Code L
Drive End Bearing BALL IP Code 22
Opposite End Bearing BALL
Drive End Bearing Size 205
Opposite End Bearing Size 203
Weight 42.8 LB lbs
CE Y CSA Y
UL Recognized Construction
Thermal Protection NOT
