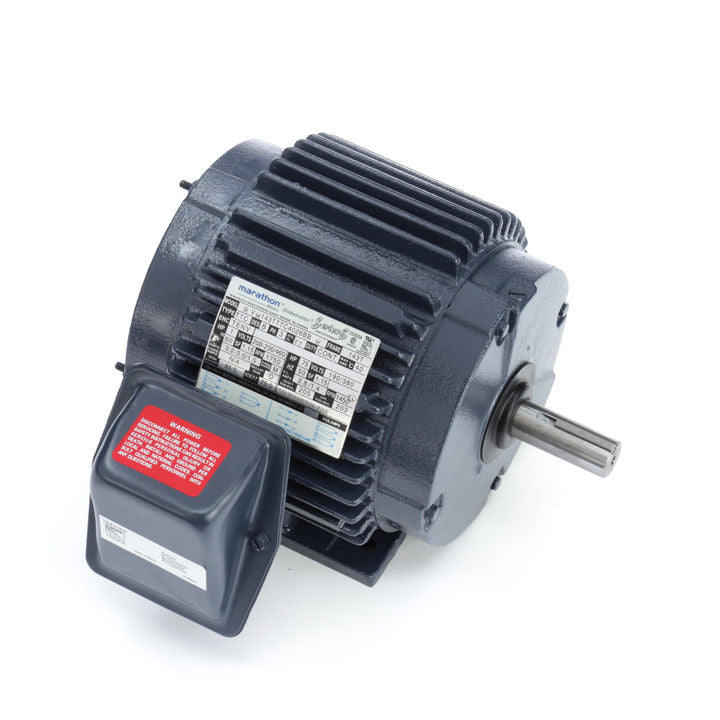

Marathon Electric E826, 143TTTC4026, 1 Hp, 1800 Rpm, 143T FR, 230/460, 3 PH, TENV, Rigid Base, General Purpose, EPAct Effiencies

Marathon Electric E826, 143TTTC4026, 1 Hp, 1800 Rpm, 143T FR, 230/460, 3 PH, TENV, Rigid Base, General Purpose, EPAct Effiencies

$739.00
$739.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
Popular Items is no longer manufacturing this motor, possible replacement is the following Popular Items part# E349

**This motor has been replaced by Model# E349**
E826, 143TTTC4026, 1 Hp, 1800 Rpm, 143T FR, 230/460, 3 PH, TENV, Rigid Base, General Purpose, EPAct Effiencies.

Engineering Data

60 Hertz
HP 1 Voltage 208-230/460
kW 0.75 FL Amps 3.2-3.0/1.5
RPM 1800
FL Eff 85.5 % SF 1.15
50 Hertz
HP 3/4 Voltage 190/380
kW 0.56 FL Amps 2.8/1.4
RPM 1500
FL Eff 84 % SF 1.15

Phase 3 Insulation Class F
Frame 143T Duty CONTINUOUS
Enclosure TENV Ambient 40
Mounting Rigid NEMA Design B
Orientation HORIZONTAL Starting Type ACROSS THE LINE
Assembly F1 (F2 Modification Available) KVA Code M
Drive End Bearing BALL IP Code 43
Opposite End Bearing BALL
Drive End Bearing Size 205
Opposite End Bearing Size 203
Weight 51 LB lbs
CE N CSA Y
UL Recognized Construction
Thermal Protection NOT
