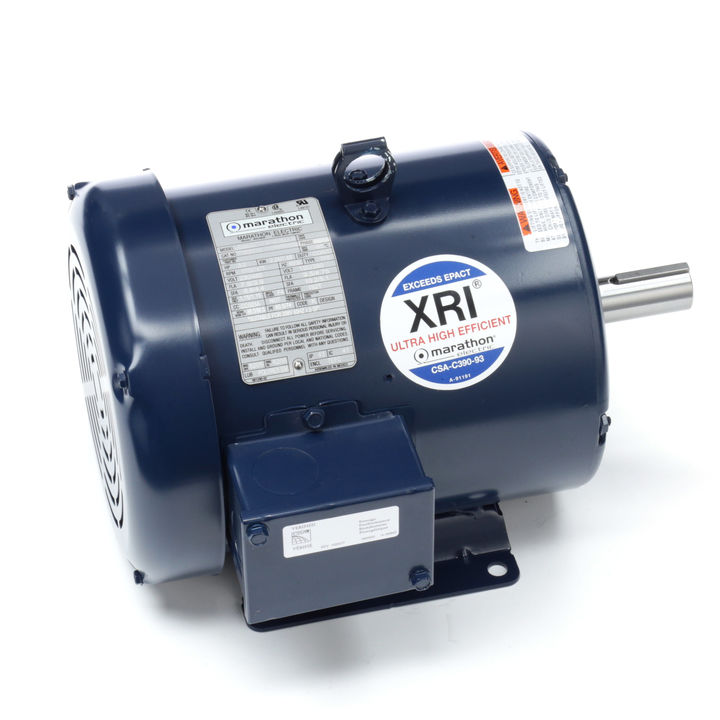

Marathon Electric E953, 3 Hp, 1800 Rpm, 182T FR, 208-230/460 Vac, 3 PH, TEFC, Rigid Base, General Purpose, EPAct Efficiency, 182TTFB4026.

**This motor has been replaced by Model# E2110**
E953, 3 Hp, 1800 Rpm, 182T FR, 208-230/460 Vac, 3 PH, TEFC, Rigid Base, General Purpose, EPAct Efficiency, 182TTFB4026.

Engineering Data

60 Hertz
HP 3 Voltage 208-230/460
kW 2.24 FL Amps 8.8-8.2/4.1
RPM 1800
FL Eff 87.5 % SF 1.15
50 Hertz
HP 2 Voltage 190/380
kW 1.49 FL Amps 6.8/3.4
RPM 1500
FL Eff 87.5 % SF 1.15

Phase 3 Insulation Class F
Frame 182T Duty CONTINUOUS
Enclosure TEFC Ambient 40
Mounting Rigid NEMA Design B
Orientation HORIZONTAL Starting Type ACROSS THE LINE
Assembly F1 ONLY KVA Code K
Drive End Bearing BALL IP Code 43
Opposite End Bearing BALL
Drive End Bearing Size 206
Opposite End Bearing Size 205
Weight 96 LB lbs
CE Y CSA Y
UL Recognized Construction
Thermal Protection NOT
