Industrial Motors

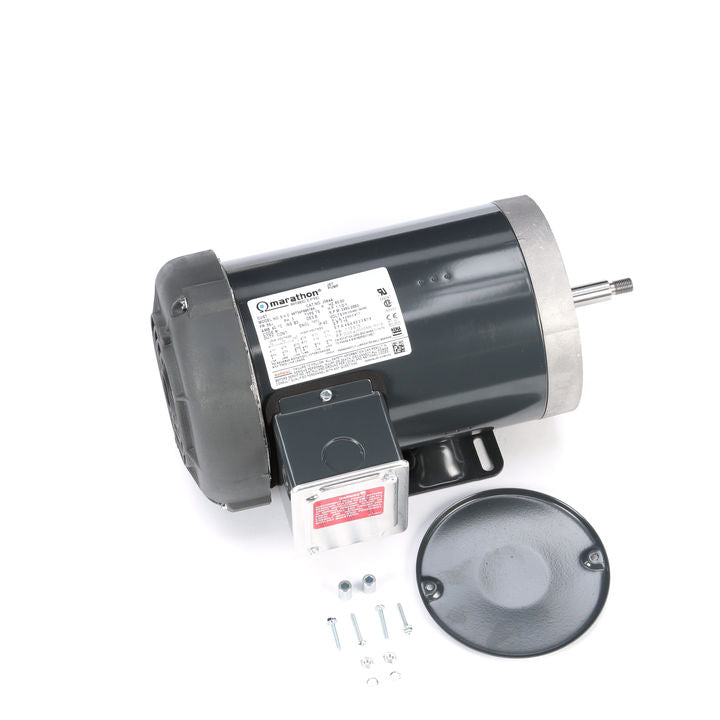

Marathon Electric K246, 1 1/2 Hp, 3600 Rpm, 56J FR, 200-230/440 Vac, 3 PH, TEFC, C-Face with Base, Jet Pump Motor, 5K49PN2350

Marathon Electric K246, 1 1/2 Hp, 3600 Rpm, 56J FR, 200-230/440 Vac, 3 PH, TEFC, C-Face with Base, Jet Pump Motor, 5K49PN2350

$693.00
$693.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
Marathon Electric Motors is no longer manufacturing this motor, possible replacement is the following Marathon Electric Motors part# J064A

** This motor has been replaced by Model# J064A**
K246, 1 1/2 Hp, 3600 Rpm, 56J FR, 200-230/440 Vac, 3 PH, TEFC, C-Face with Base, Jet Pump Motor, 5K49PN2350.

General Specifications

Model : 5K49PN2350Catalog No : K246Part Description : 1.5,3450,TEFC,56J,3/60/200-230/460Category : Totally Enclosed Fan Cooled (TEFC)Stock : Yes
Nameplate Specifications
Output HP : 1.5 HpOutput KW : 1.12 kWFrequency : 60 HzVoltage : 200-230/460 VCurrent : 4.8-4.2 ASpeed : 3450 rpmService Factor : 1.3 Phase : 3 Efficiency : 0 %Duty : CONT Insulation Class : B Design Code : B KVA Code : L Frame : 56J Enclosure : TEFC Overload Protector : N/R Ambient Temperature : 40 °CDrive End Bearing Size : 6203 Opp Drive End Bearing Size : 6203 UL : Recognized CSA : Y CE : N
Technical Specifications
Electrical Type : Three Phase Starting Method : N/R Poles : 2 Rotation : CCW/CW Mounting : WB Motor Orientation : ANY Drive End Bearing : LOCKED Opp Drive End Bearing : BALL Frame Length : 7.15 inShaft Extension : .625 X 2.39 - .4375-20 THD in

View full details
