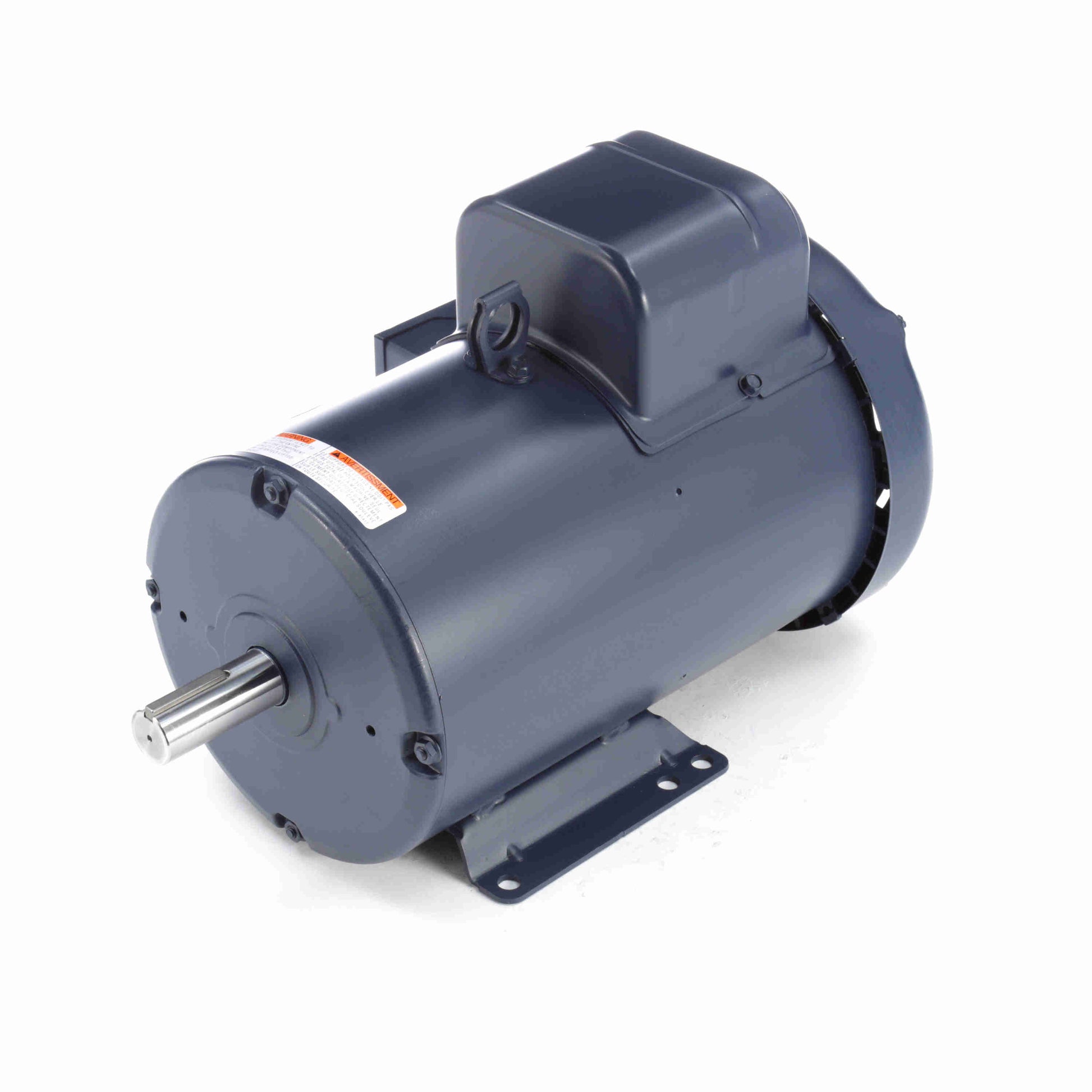

Leeson Electric 131578.00, 5 HP, 3600 RPM, 184T FR, TEFC, 230 Vac, 1 PH, Rigid Base, Washguard

131578.00, 5 HP, 3600 RPM, 184T FR, TEFC, 230 Vac, 1 PH, Rigid Base, Washguard

Engineering Data

Output HP:5 Hp
Output KW:3.7 kW
Frequency:60 Hz
Voltage:230 V
Current:19.8 A
Speed:3500 rpm
Service Factor:1.15
Phase:1
Efficiency:82.5 %
Power Factor:98
Duty:Continuous
Insulation Class:F
Design Code:L
KVA Code:H
Frame:184T
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6206
Opp Drive End Bearing Size:6205
UL:Recognized
CSA:Y
CE:NIP Code:43
Technical Specifications
Electrical Type:Capacitor Start Capacitor Run
Starting Method:Across The Line
Poles:2
Rotation:Selective Counterclockwise
Resistance Main:.342 Ohms
Mounting:Rigid base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:T
Overall Length:16.96 in
Frame Length:11.50 in
Shaft Diameter:1.125 in
Shaft Extension:2.75 in
Assembly/Box Mounting:F1 ONLY
