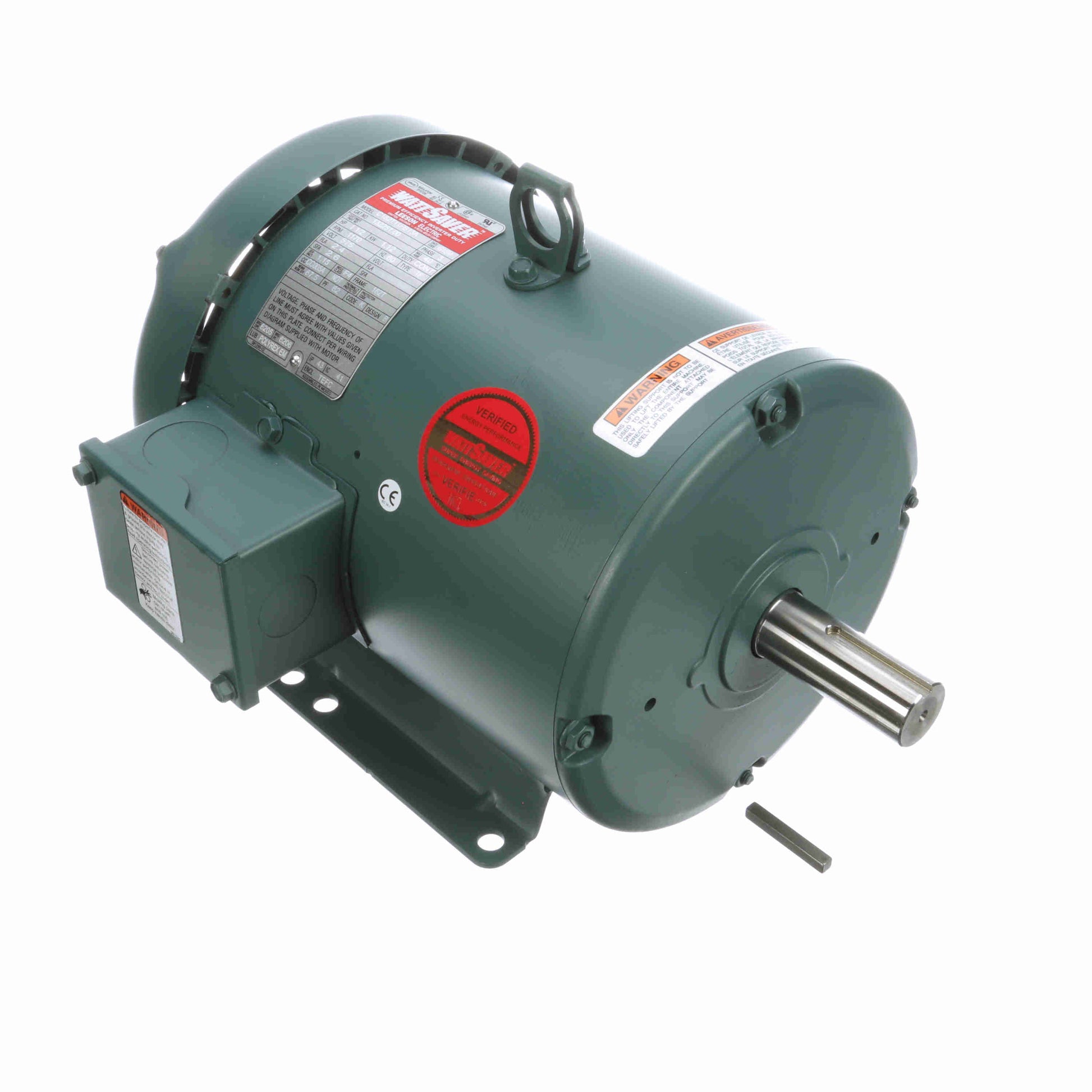

Leeson Electric 132251.00, 1 1/2 HP, 1200 RPM, 182T FR, 575 Vac, 3 PH, TEFC, Rigid Base, Special Voltage Motor.

132251.00, 1 1/2 HP, 1200 RPM, 182T FR, 575 Vac, 3 PH, TEFC, Rigid Base, Special Voltage Motor.

Engineering Data

Output HP:1.50 Hp
Output KW:1.1 kW
Frequency:60 Hz
Voltage:575 V
Current:2.4 A
Speed:1170 rpm
Service Factor:1.15
Phase:3
Efficiency:87.5 %
Power Factor:62
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:K
Frame:182T
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6206
Opp Drive End Bearing Size:6205
UL:Recognized
CSA:Y
CE:YIP Code:43
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Across The Line
Poles:6
Rotation:Reversible
Resistance Main:11.35 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:T
Overall Length:14.46 in
Frame Length:9.00 in
Shaft Diameter:1.125 in
Shaft Extension:2.75 in
Assembly/Box Mounting:F1/F2 CAPABLE
