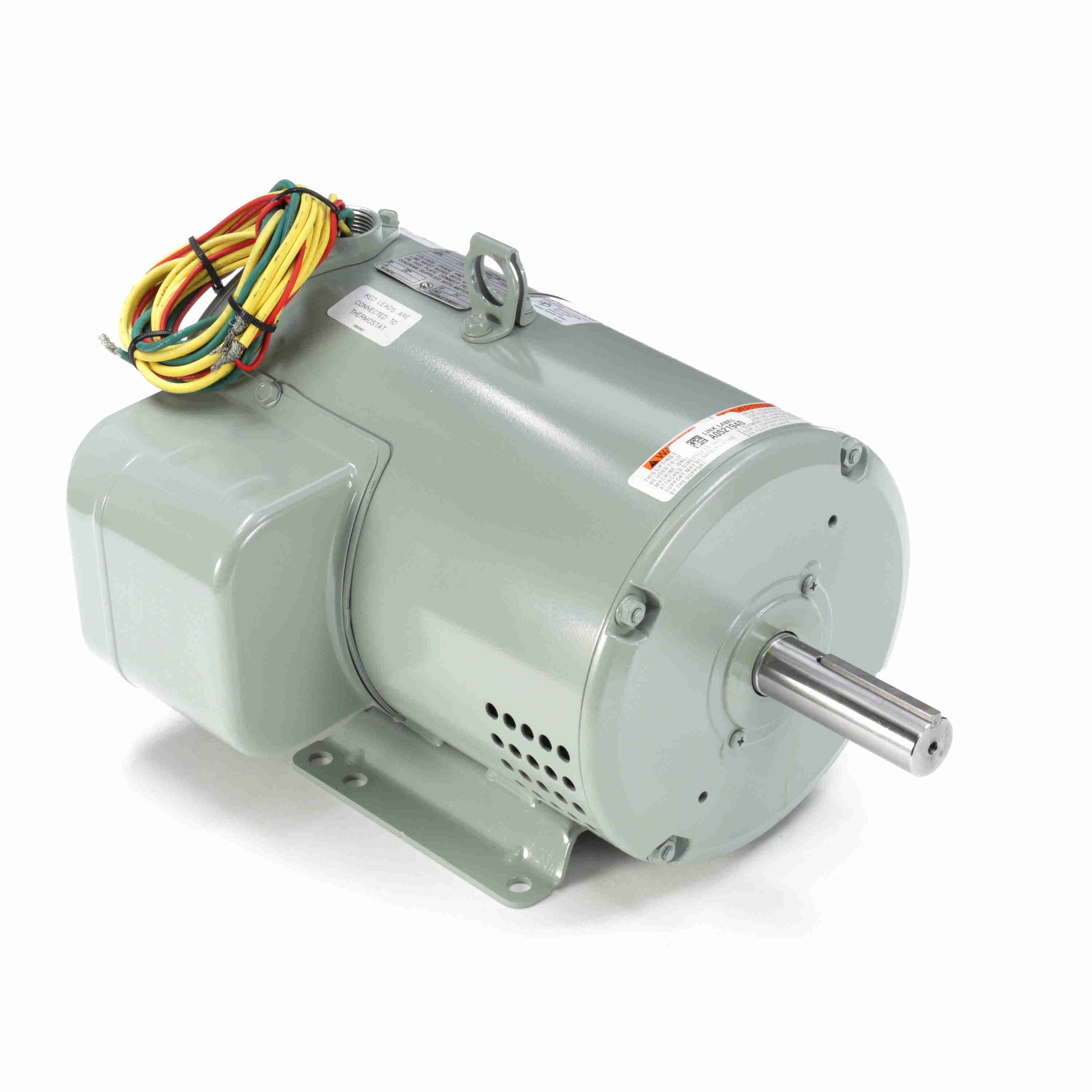

Leeson Electric 132392.00, 7 1/2 HP, 3500 RPM, 182TZ FR, 230 Vac, 1 PH, TEAO, Rigid Base, Crop Dryer Motor.

132392.00, 7 1/2 HP, 3500 RPM, 182TZ FR, 230 Vac, 1 PH, TEAO, Rigid Base, Crop Dryer Motor.

Engineering Data

Output HP:7.50 Hp
Output KW:5.6 kW
Frequency:60/60 Hz
Voltage:230 V
Current:30.0 A
Speed:3450 rpm
Service Factor:1
Phase:1
Efficiency:85.5 %
Power Factor:98
Duty:Continuous
Insulation Class:F
Design Code:NO DESIGN CODE
KVA Code:F
Frame:182TZ
Enclosure:Totally Enclosed Air Over
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6206
Opp Drive End Bearing Size:6205
UL:Recognized
CSA:Y
CE:N
IP Code:43
Technical Specifications
Electrical Type:Capacitor Start Capacitor Run
Starting Method:Across The Line
Poles:2
Rotation:Selective Counterclockwise
Resistance Main:.185 Ohms
Mounting:Rigid Base
Motor Orientation:HORIZONTAL
Drive End Bearing:BALL
Opp Drive End Bearing:BALL
Frame Material:Rolled Steel
Shaft Type:Single Special Extension
Overall Length:17.44 in
Frame Length:12.50 in
Shaft Diameter:1.125 in
Shaft Extension:3.5 in
Assembly/Box Mounting:F3
