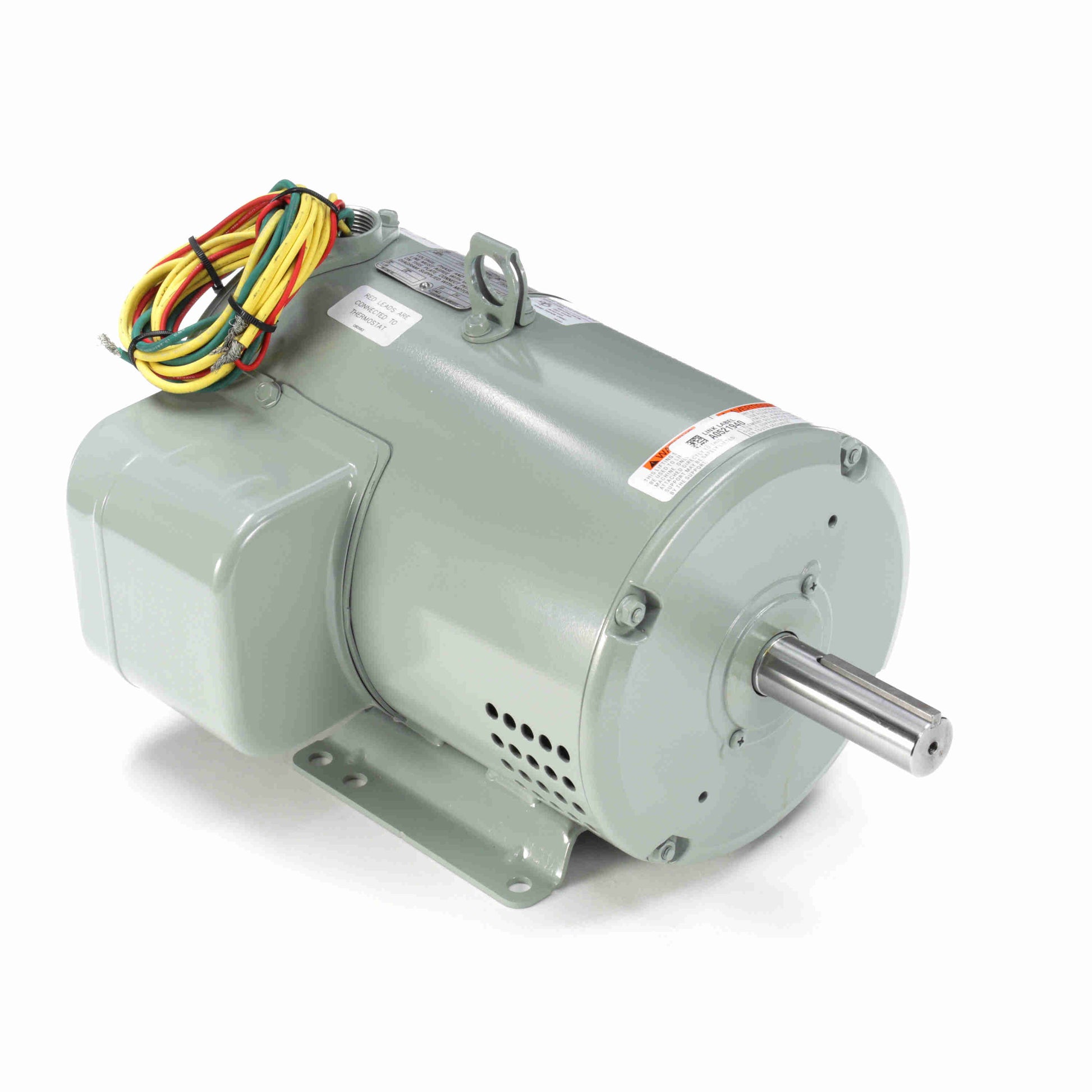

Leeson Electric 132393.00, 5 HP, 3600 RPM, 184TZ FR, 208-230/460 Vac, 3 PH, TEAO, Rigid Base, Crop Dryer Motor.

132393.00, 5 HP, 3600 RPM, 184TZ FR, 208-230/460 Vac, 3 PH, TEAO, Rigid Base, Crop Dryer Motor.

Engineering Data

Output HP:5 Hp
Output KW:3.7 kW
Frequency:60/60 Hz
Voltage:208-230/460 V
Current:13.1-16.5/8.3 A
Speed:3545 rpm
Service Factor:1
Phase:3
Efficiency:89.5 %
Power Factor:88.6
Duty:Continuous
Insulation Class:F
Design Code:NO DESIGN CODE
KVA Code:J
Frame:184TZ
Enclosure:Totally Enclosed Air Over
Thermal Protection:No
Ambient Temperature:50 °C
Drive End Bearing Size:6206
Opp Drive End Bearing Size:6205
UL:Recognized
CSA:Y
CE:Y
IP Code:43
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Across The Line
Poles:2
Rotation:Reversible
Resistance Main:.48 Ohms
Mounting:Rigid base
Motor Orientation:HORIZONTAL
Drive End Bearing:BALL
Opp Drive End Bearing:BALL
Frame Material:Rolled Steel
Shaft Type:Single Special Extension
Overall Length:15.38 in
Frame Length:9.50 in
Shaft Diameter:1.125 in
Shaft Extension:3.5 in
Assembly/Box Mounting:F1 ONLY
