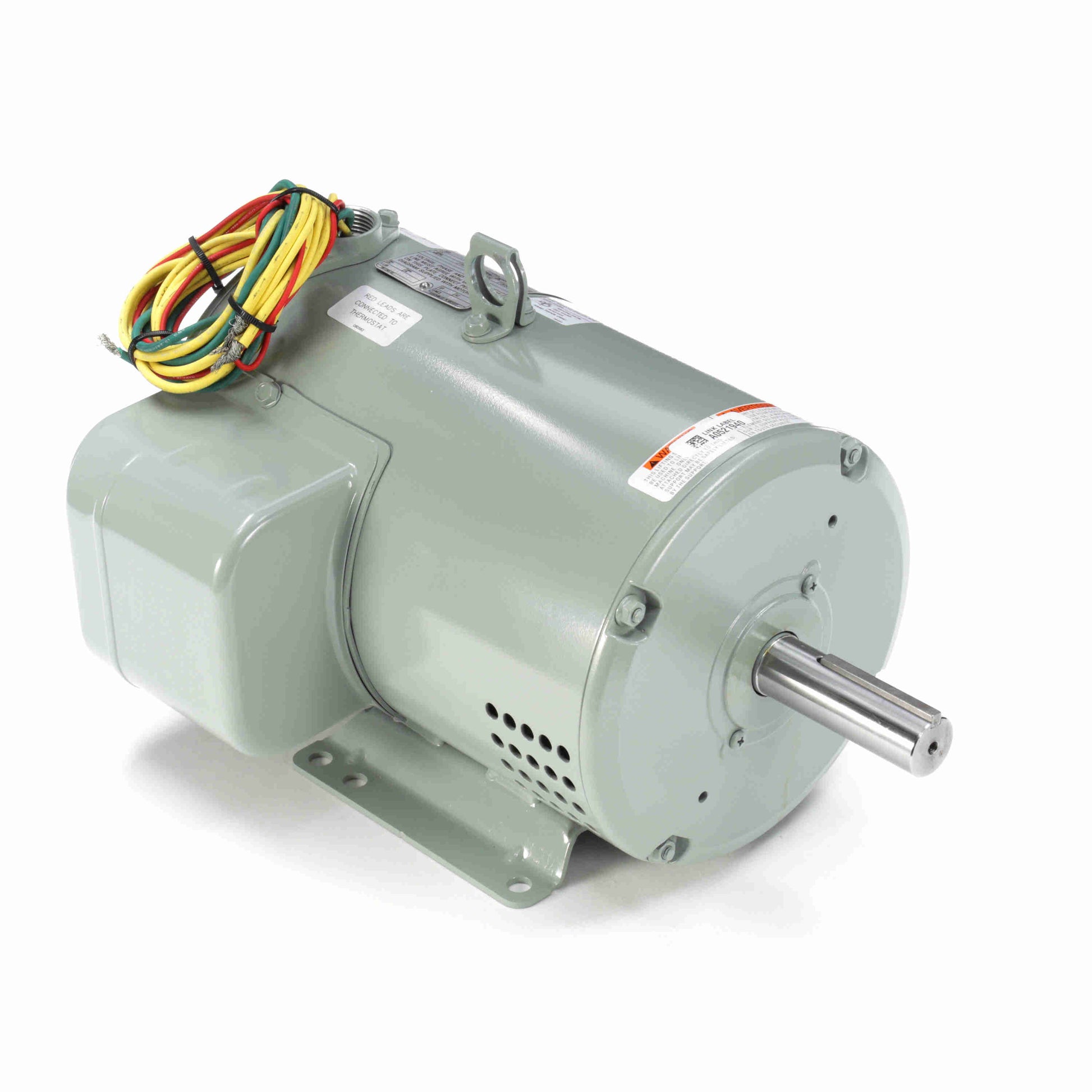

Leeson Electric 132394.00, 7 1/2 HP, 3600 RPM, 184TZ FR, 208-230/460 Vac, 3 PH, TEAO, Rigid Base, Crop Dryer Motor.

132394.00, 7 1/2 HP, 3600 RPM, 184TZ FR, 208-230/460 Vac, 3 PH, TEAO, Rigid Base, Crop Dryer Motor.

Engineering Data

Output HP:7.50 Hp
Output KW:5.6 kW
Frequency:60/60 Hz
Voltage:208-230/460 V
Current:19.7-24.8/12.4 A
Speed:3490 rpm
Service Factor:1
Phase:3
Efficiency:85.5 %
Power Factor:91.7
Duty:Continuous
Insulation Class:F
Design Code:NO DESIGN CODE
KVA Code:H
Frame:184TZ
Enclosure:Totally Enclosed Air Over
Thermal Protection:No
Ambient Temperature:50 °C
Drive End Bearing Size:6206
Opp Drive End Bearing Size:6205
UL:Recognized
CSA:Y
CE:NIP Code:43
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Across The Line
Poles:2
Rotation:Reversible
Resistance Main:1.3 Ohms
Mounting:Rigid Base
Motor Orientation:HORIZONTAL
Drive End Bearing:BALL
Opp Drive End Bearing:BALL
Frame Material:Rolled Steel
Shaft Type:Single Special Extension
Overall Length:17.38 in
Frame Length:11.50 in
Shaft Diameter:1.125 in
Shaft Extension:3.5 in
Assembly/Box Mounting:F1 ONLY
