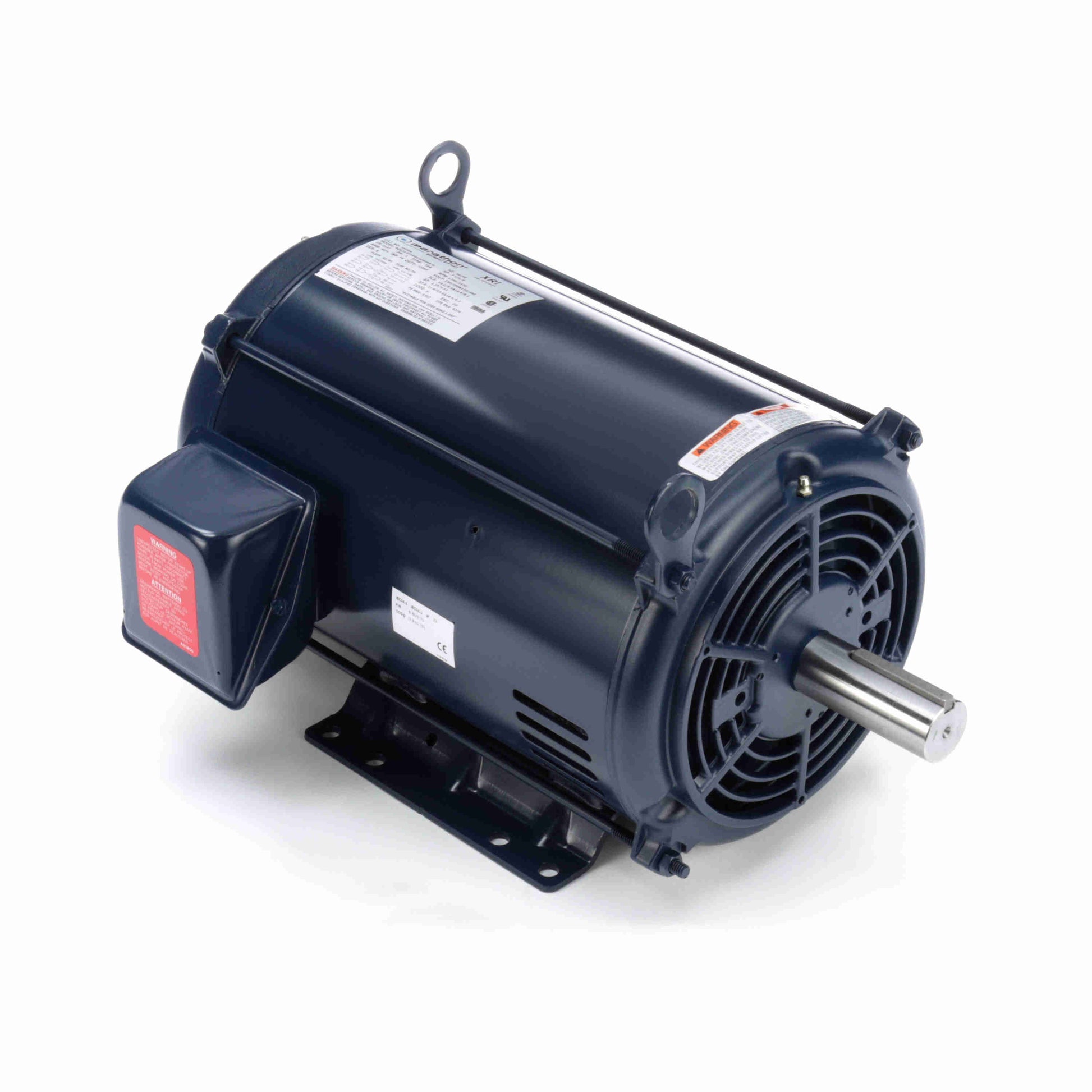

Leeson Electric 132457.00, 3 HP, 3600 RPM, 182JM FR, 220 Vac, 1 PH, TEFC, Closed-Couple Pump Motor.

132457.00, 3 HP, 3600 RPM, 182JM FR, 220 Vac, 1 PH, TEFC, Closed-Couple Pump Motor.

Engineering Data

Output HP:3 Hp
Output KW:2.2 kW
Frequency:60 Hz
Voltage:220 V
Current:14.0 A
Speed:3530 rpm
Service Factor:1.15
Phase:1
Efficiency:80 %
Power Factor:89
Duty:Continuous
Insulation Class:F
Design Code:L
KVA Code:G
Frame:182JM
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6207
Opp Drive End Bearing Size:6205
UL:Recognized
CSA:Y
CE:Y
IP Code:43
Technical Specifications
Electrical Type:Capacitor Start Capacitor Run
Starting Method:Across The Line
Poles:2
Rotation:Selective Counterclockwise
Resistance Main:.12 Ohms
Mounting:Round
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:JM
Overall Length:16.59 in
Frame Length:9.50 in
Shaft Diameter:0.875 in
Shaft Extension:4.25 in
Assembly/Box Mounting:F1 ONLY
