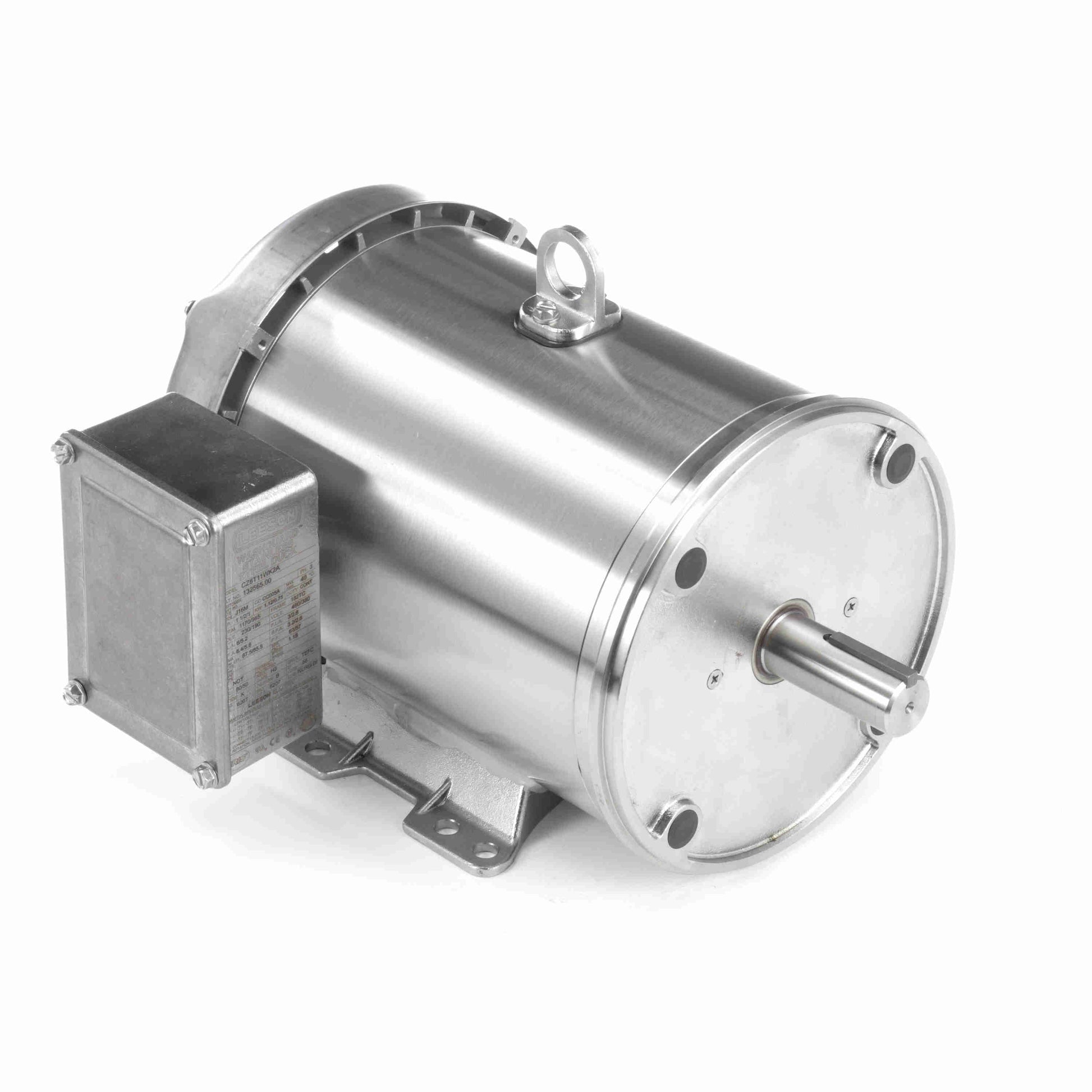

Leeson Electric 132565.00, 1 1/2 HP, 1200 RPM, 182TC FR, 230/460 Vac, TEFC, 3 PH, Rigid Base, Washdown Motor.

132565.00, 1 1/2 HP, 1200 RPM, 182TC FR, 230/460 Vac, TEFC, 3 PH, Rigid Base, Washdown Motor.

Engineering Data

Output HP:1.50 Hp
Output KW:1.1 kW
Frequency:60/50 Hz
Voltage:230/460 V
Current:6.0/3.0 A
Speed:1170 rpm
Service Factor:1.15
Phase:3
Efficiency:87.5 %
Power Factor:62
Duty:Continuous
Insulation Class:H
Design Code:B
KVA Code:k
Frame:182TC
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6207
Opp Drive End Bearing Size:6207
UL:Recognized
CSA:Y
CE:YIP Code:56
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Line Or Inverter
Poles:6
Rotation:Reversible
Resistance Main:0 Ohms
Mounting:Rigid base
Motor Orientation:HORIZONTAL
Drive End Bearing:BALL
Opp Drive End Bearing:BALL
Frame Material:Stainless Steel
Shaft Type:T
Overall Length:14.77 in
Frame Length:9.00 in
Shaft Diameter:1.125 in
Shaft Extension:2.75 in
Assembly/Box Mounting:F1 ONLY
