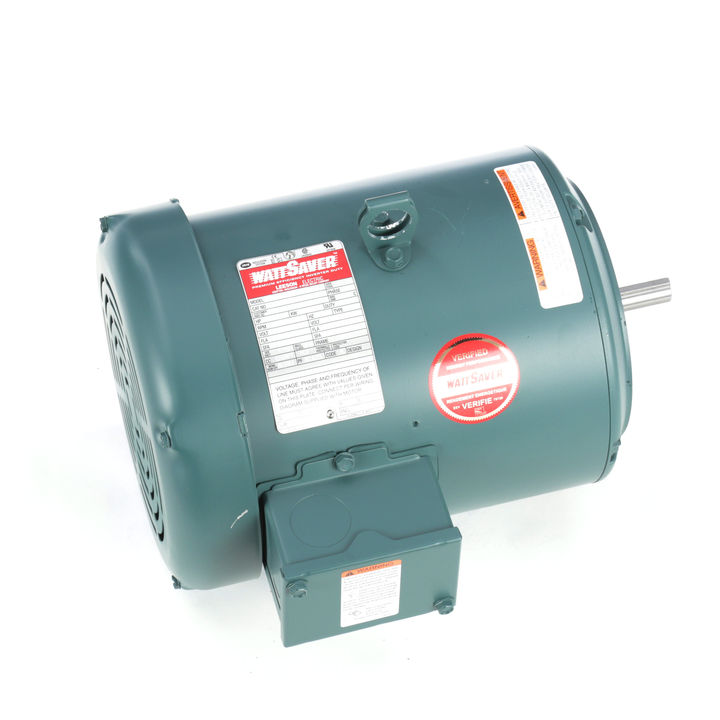

Leeson Electric 132596.00, 1 1/2 HP, 1200 RPM, 56C FR, TEFC, 230/460 Vac, 3 PH, C Face Less Base, General Purpose.

132596.00, 1 1/2 HP, 1200 RPM, 56C FR, TEFC, 230/460 Vac, 3 PH, C Face Less Base, General Purpose.

Engineering Data

Output HP:1.50 Hp
Output KW:1.1 kW
Frequency:60 Hz
Voltage:230/460 V
Current:6.0/3.0 A
Speed:1170 rpm
Service Factor:1.15
Phase:3
Efficiency:87.5 %
Power Factor:62
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:K
Frame:56C
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6206
Opp Drive End Bearing Size:6205
UL:Recognized
CSA:Y
CE:YIP Code:43
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Across The Line
Poles:6
Rotation:Reversible
Resistance Main:0 Ohms
Mounting:Round
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:NEMA 56
Overall Length:13.02 in
Frame Length:9.00 in
Shaft Diameter:0.625 in
Shaft Extension:1.88 in
Assembly/Box Mounting:F1/F2 CAPABLE
