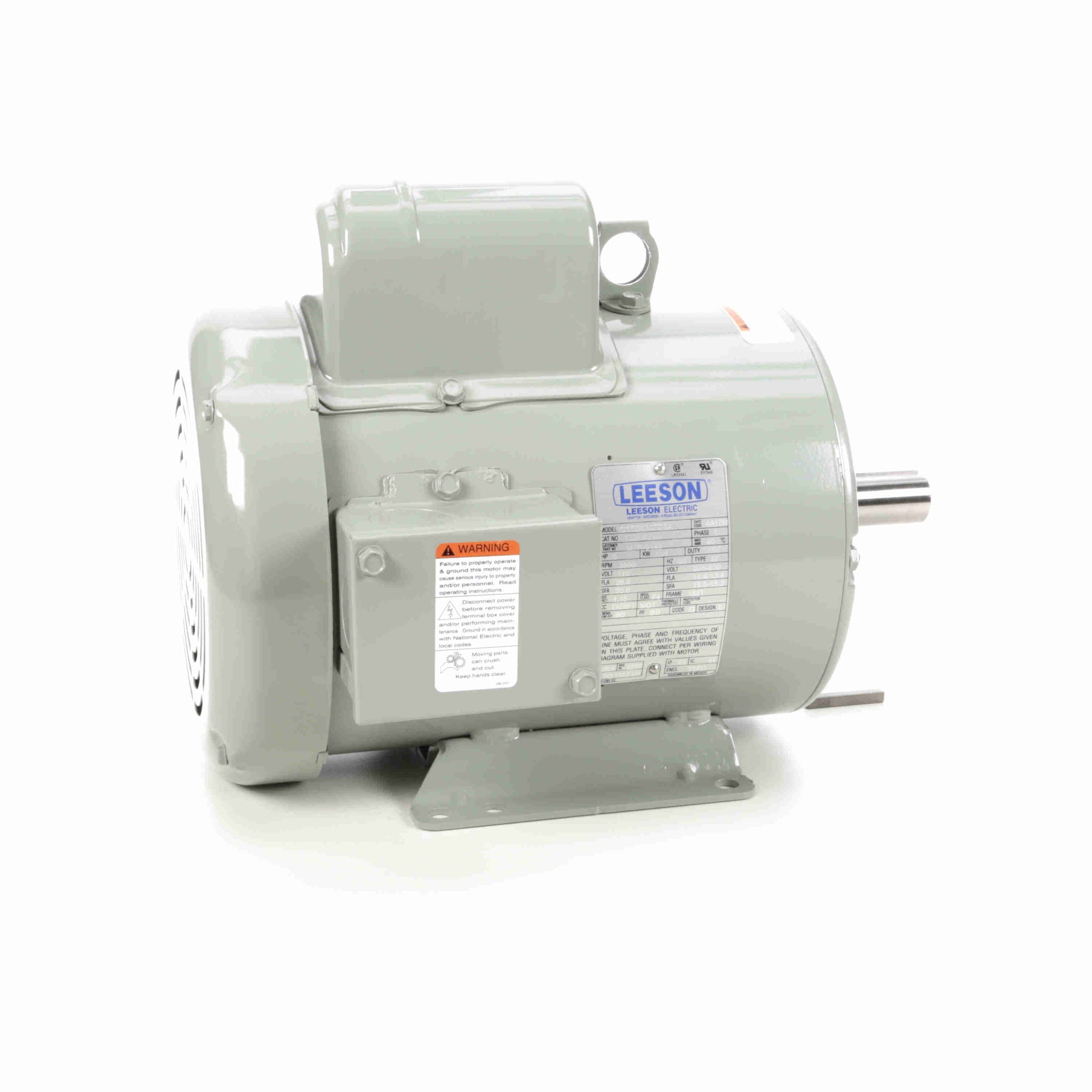

Leeson Electric 132640.00, 3 HP, 3600 RPM, 182T FR, 115/208-230 Vac, 3 PH, TEFC, Crop Dryer Motor.

132640.00, 3 HP, 3600 RPM, 182T FR, 115/208-230 Vac, 3 PH, TEFC, Crop Dryer Motor.

Engineering Data

Output HP:3 Hp
Output KW:2.2 kW
Frequency:60 Hz
Voltage:115/208-230 V
Current:26.8/14.4-13.4 A
Speed:3500 rpm
Service Factor:1.15
Phase:1
Efficiency:80 %
Power Factor:89
Duty:Continuous
Insulation Class:F
Design Code:L
KVA Code:G
Frame:182T
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6206
Opp Drive End Bearing Size:6205
UL:Recognized
CSA:Y
CE:N
IP Code:43
Technical Specifications
Electrical Type:Capacitor Start Capacitor Run
Starting Method:Across The Line
Poles:2
Rotation:Selective Counterclockwise
Resistance Main:.12 Ohms
Mounting:Rigid base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:T
Overall Length:14.96 in
Frame Length:9.50 in
Shaft Diameter:1.125 in
Shaft Extension:2.81 in
Assembly/Box Mounting:F1 ONLY
