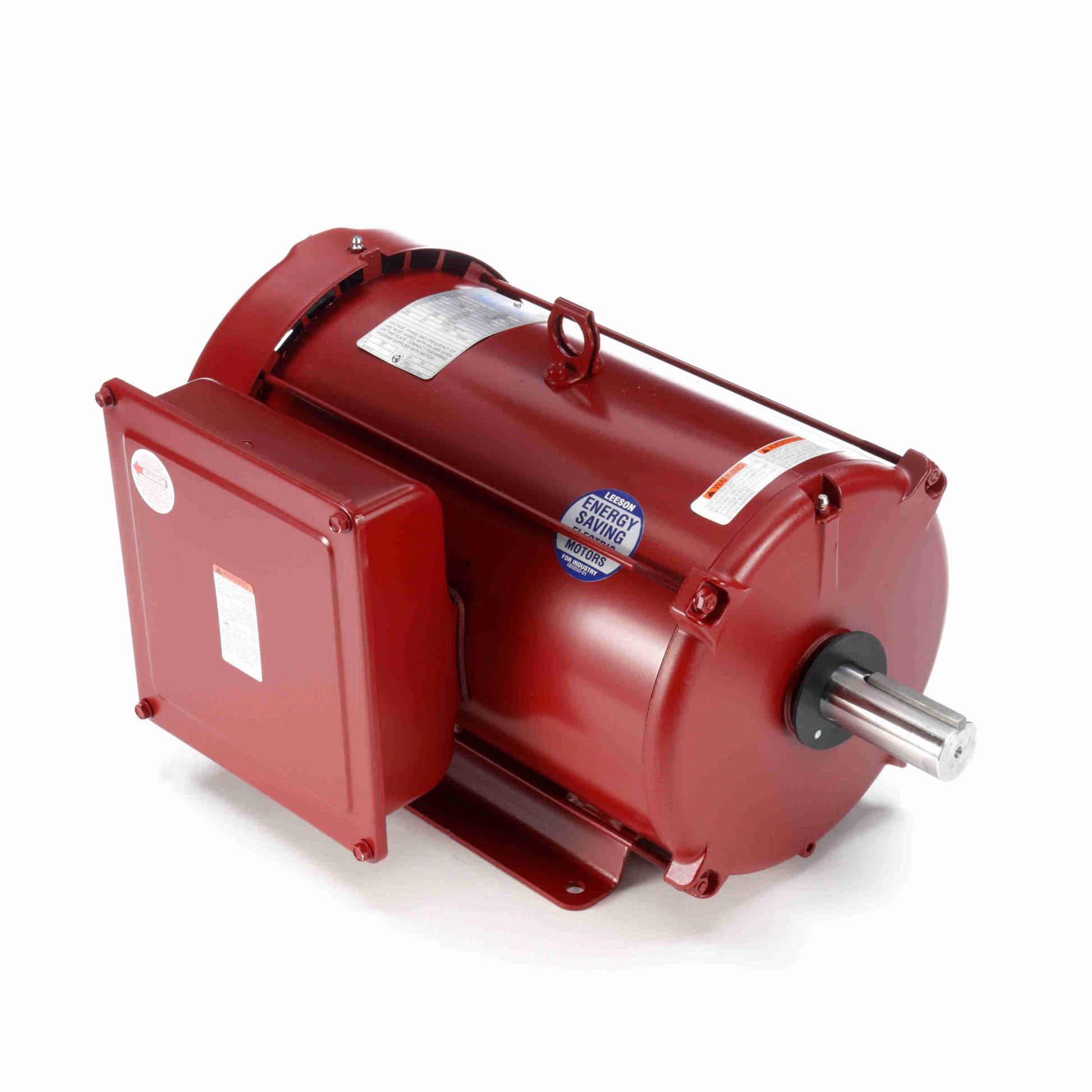

Leeson Electric 140707.00, 7 1/2 HP, 1800 RPM, 215T FR, 230 Vac, 1 PH, TEFC, Rigid Base, Agricultural Motor.

140707.00, 7 1/2 HP, 1800 RPM, 215T FR, 230 Vac, 1 PH, TEFC, Rigid Base, Agricultural Motor.

Engineering Data

Output HP:7.50 Hp
Output KW:5.6 kW
Frequency:60 Hz
Voltage:230 V
Current:32.0 A
Speed:1740 rpm
Service Factor:1.15
Phase:1
Efficiency:85.5 %
Power Factor:90
Duty:Continuous
Insulation Class:F
Design Code:NO DESIGN CODE
KVA Code:J
Frame:215T
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:Manual
Ambient Temperature:40 °C
Drive End Bearing Size:6207
Opp Drive End Bearing Size:6206
UL:Recognized
CSA:Y
CE:Y
IP Code:43
Technical Specifications
Electrical Type:Capacitor Start Capacitor Run
Starting Method:Across The Line
Poles:4
Rotation:Selective Counterclockwise
Resistance Main:.135 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:T
Overall Length:20.21 in
Frame Length:13.50 in
Shaft Diameter:1.375 in
Shaft Extension:3.38 in
Assembly/Box Mounting:F1 ONLY
