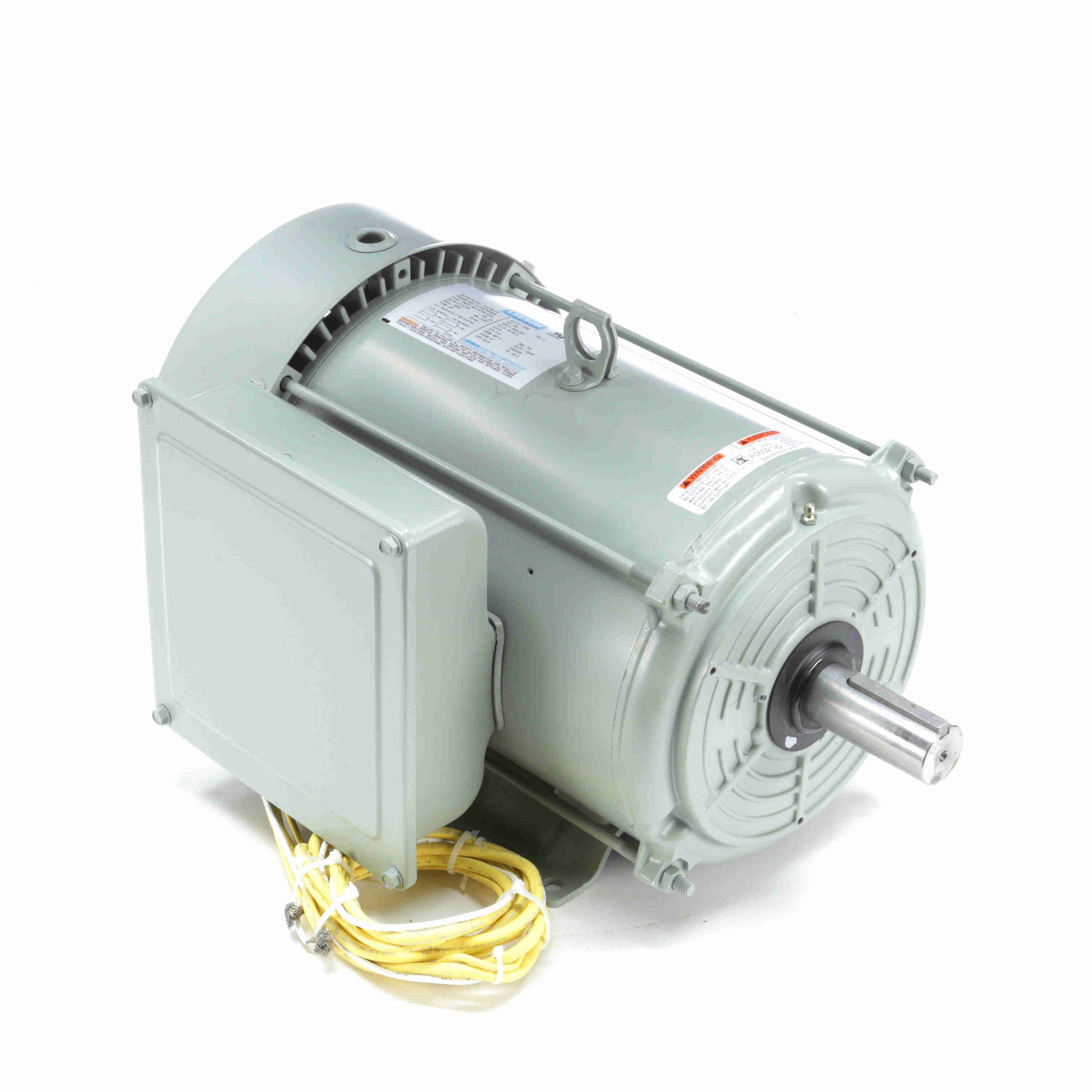

Leeson Electric 141084.00, 10 HP, 3600 RPM, 215TZ FR, 230 Vac, 1 PH, DP, Rigid Base, Crup Dryer Motor.

141084.00, 10 HP, 3600 RPM, 215TZ FR, 230 Vac, 1 PH, DP, Rigid Base, Crup Dryer Motor.

Engineering Data

Output HP:10 Hp
Output KW:7.5 kW
Frequency:60/60 Hz
Voltage:230 V
Current:40.0 A
Speed:3525 rpm
Service Factor:1
Phase:1
Efficiency:84 %
Power Factor:97.5
Duty:Continuous
Insulation Class:F
Design Code:L
KVA Code:K
Frame:215TZ
Enclosure:Drip Proof
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:309
Opp Drive End Bearing Size:206
UL:Recognized
CSA:Y
CE:NIP Code:22
Technical Specifications
Electrical Type:Capacitor Start Capacitor Run
Starting Method:Across The Line
Poles:2
Rotation:Selective Counterclockwise
Resistance Main:.106 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:Single Special Extension
Overall Length:20.08 in
Frame Length:12.40 in
Shaft Diameter:1.125 in
Shaft Extension:3.75 in
Assembly/Box Mounting:F3
