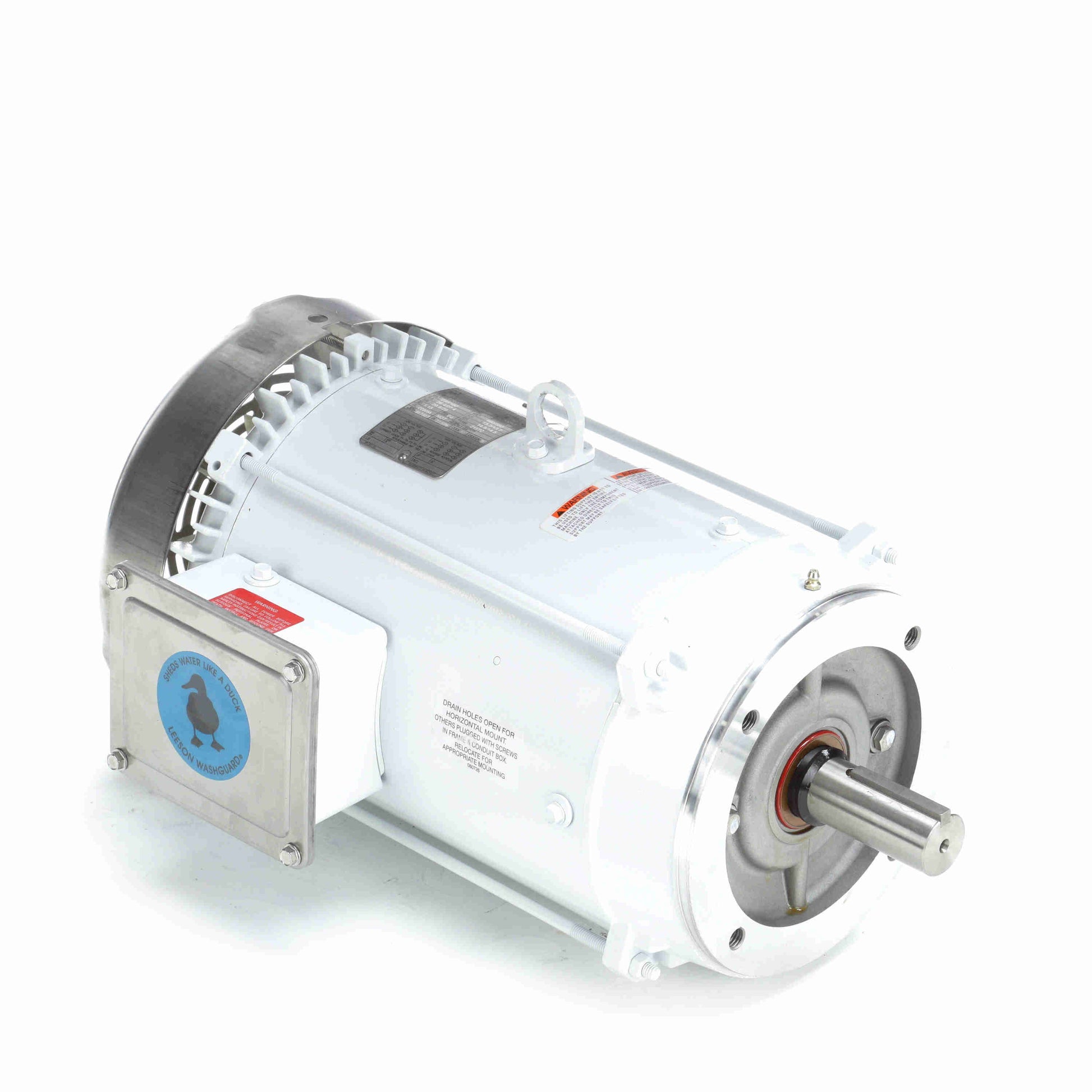

Leeson Electric 141268.00, 7 1/2 HP, 1500 RPM, 215TC FR, 230/460 Vac, 3 PH, TEFC, C-Face With Base, JM Pump, Washdown Duty Pump Motor

141268.00, 7 1/2 HP, 1500 RPM, 215TC FR, 230/460 Vac, 3 PH, TEFC, C-Face With Base, JM Pump, Washdown Duty Pump Motor

Engineering Data

Output HP:7 1/2 Hp
Output KW:7.5 kW
Frequency:60 Hz
Voltage:230/460 V
Current:26.4/13.2 A
Speed:1465 rpm
Service Factor:1.15
Phase:3
Efficiency:91.7 %
Power Factor:77.5
Duty:CONTINUOUS
Insulation Class:F4
Design Code:B
KVA Code:H
Frame:215TC
Enclosure:TEFC
Thermal Protection:NOT
Ambient Temperature:40 °C
Drive End Bearing Size:6309
Opp Drive End Bearing Size:6206
UL:Y-(LEESON UL REC)
CSA:Y
CE:YIP Code:55
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:ACROSS THE LINE
Poles:4
Rotation:REV
Resistance Main:.9 Ohms
Mounting:ROUND
Motor Orientation:HORIZONTAL
Drive End Bearing:BALL
Opp Drive End Bearing:BALL
Frame Material:ROLLED STEEL
Shaft Type:T
Overall Length:20.27 in
Frame Length:11.15 in
Shaft Diameter:1 3/8 in
Shaft Extension:3.4 in
Assembly/Box Mounting:F1 ONLY
