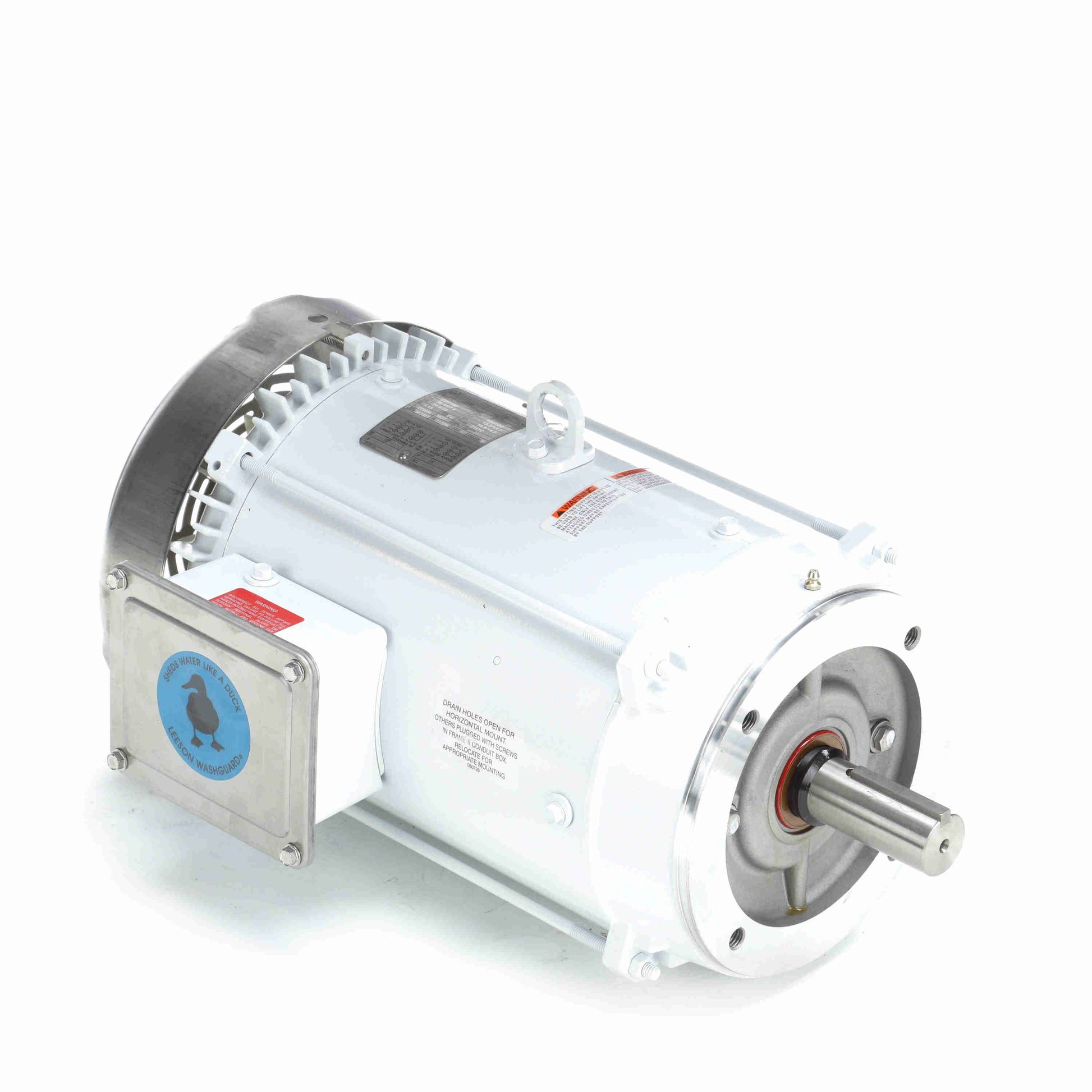

Leeson Electric 141269.00, 10 HP, 3600 RPM, 215TC FR, 230/460 Vac, 3 PH, TEFC, C-Face With Base, JM Pump, Washdown Duty Pump Motor

141269.00, 10 HP, 3600 RPM, 215TC FR, 230/460 Vac, 3 PH, TEFC, C-Face With Base, JM Pump, Washdown Duty Pump Motor

Engineering Data

Output HP:10 Hp
Output KW:7.5 kW
Frequency:60/50 Hz
Voltage:230/460 V
Current:23.6/11.8 A
Speed:3525 rpm
Service Factor:1.15
Phase:3
Efficiency:90.2 %
Power Factor:87.9
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:H
Frame:215TC
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6309
Opp Drive End Bearing Size:6206
UL:Recognized
CSA:Y
CE:Y
IP Code:55
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Across The Line
Poles:2
Rotation:Reversible
Resistance Main:.8 Ohms
Mounting:Round
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:T
Overall Length:20.27 in
Frame Length:11.15 in
Shaft Diameter:1.375 in
Shaft Extension:3.4 in
Assembly/Box Mounting:F1/F2 CAPABLE
