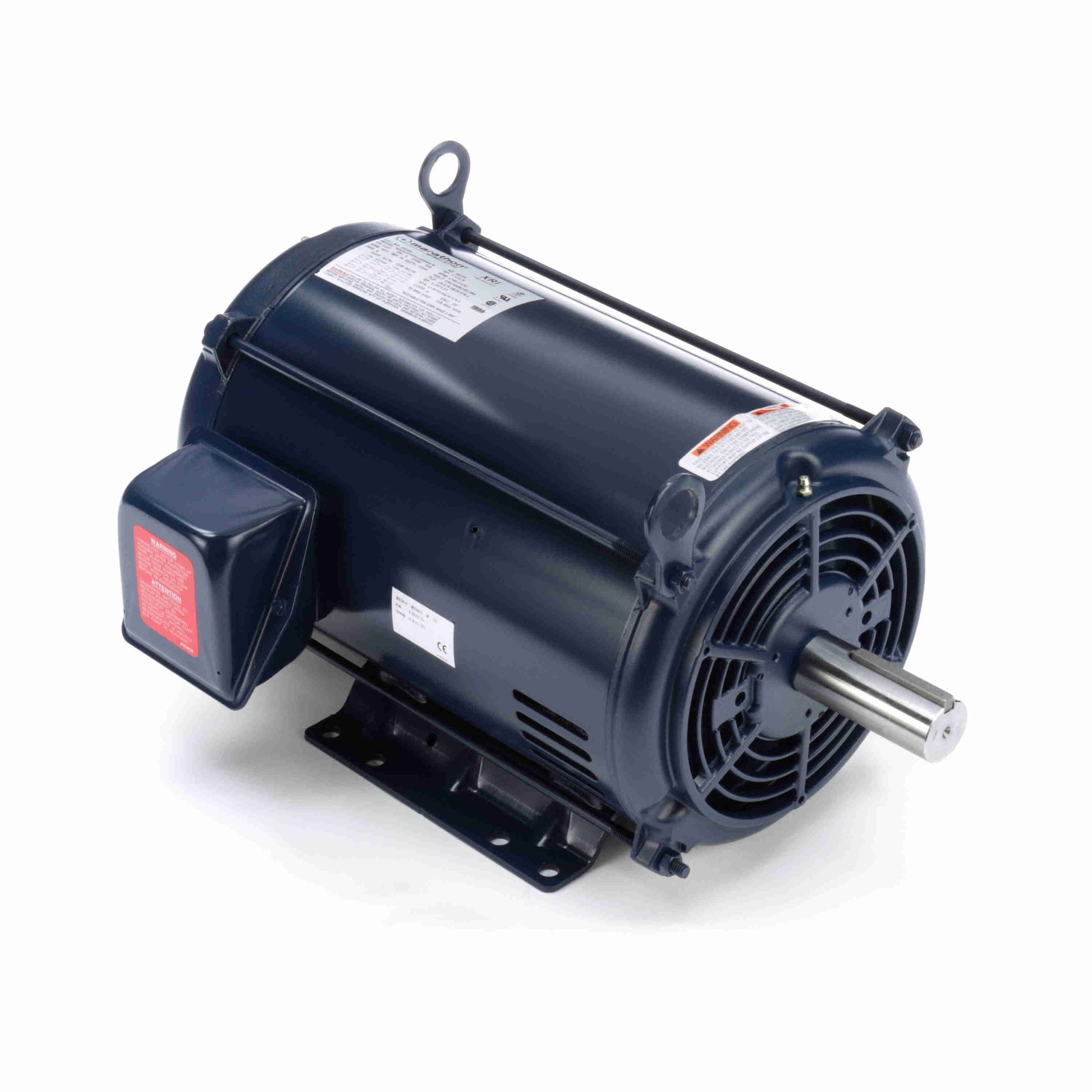

Leeson Electric 141291.00, 7 1/2 HP, 1800 RPM, 213T FR, 575 Vac, 3 PH, TEFC, Rigid Base, Special Voltage Motor.

141291.00, 7 1/2 HP, 1800 RPM, 213T FR, 575 Vac, 3 PH, TEFC, Rigid Base, Special Voltage Motor.

Engineering Data

Output HP:7.50 Hp
Output KW:5.6 kW
Frequency:60 Hz
Voltage:575 V
Current:7.7 A
Speed:1765 rpm
Service Factor:1.15
Phase:3
Efficiency:91.7 %
Power Factor:79.2
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:H
Frame:213T
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:307
Opp Drive End Bearing Size:206
UL:Recognized
CSA:Y
CE:YIP Code:43
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Across The Line
Poles:4
Rotation:Reversible
Resistance Main:1.18 Ohms
Mounting:Rigid base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:T
Overall Length:18.73 in
Frame Length:9.65 in
Shaft Diameter:1.375 inShaft Extension:3.38 in
Assembly/Box Mounting:F1/F2 CAPABLE
