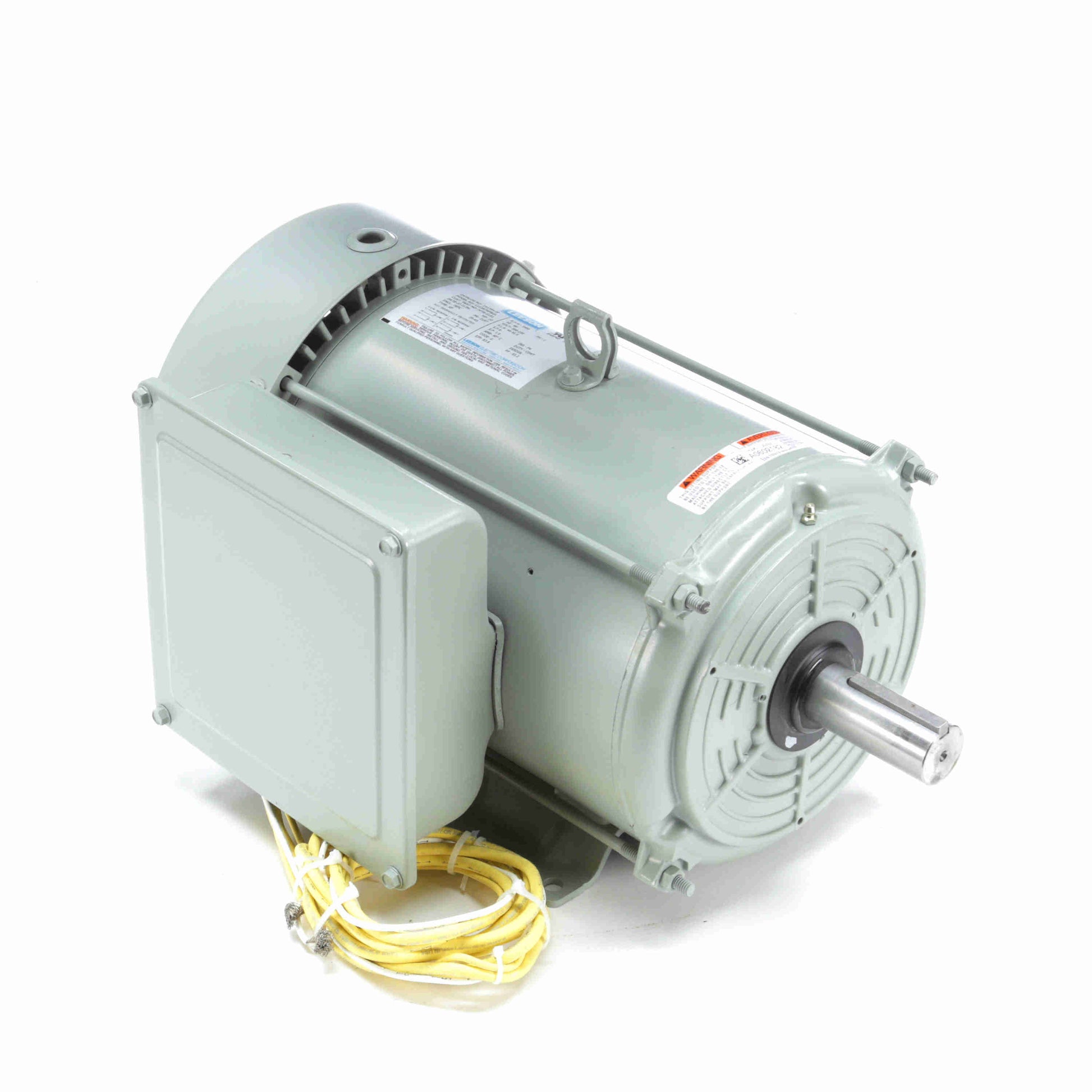

Leeson Electric 141392.00, 7 1/2 HP, 1800 RPM, 215TZ FR, 230 Vac, 1 PH, TEFC, Crop Dryer Motor.

141392.00, 7 1/2 HP, 1800 RPM, 215TZ FR, 230 Vac, 1 PH, TEFC, Crop Dryer Motor.

Engineering Data

Output HP:7.50 Hp
Output KW:5.6 kW
Frequency:60 Hz
Voltage:230 V
Current:30.0 A
Speed:1760 rpm
Service Factor:1.15
Phase:1
Efficiency:85.7 %
Power Factor:95.1
Duty:Continuous
Insulation Class:F
Design Code:No Design Code
KVA Code:J
Frame:215TZ
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6309
Opp Drive End Bearing Size:6206
UL:Recognized
CSA:Y
CE:N
IP Code:43
Technical Specifications
Electrical Type:Capacitor Start Capacitor Run
Starting Method:Across The Line
Poles:4
Rotation:Selective Counterclockwise
Resistance Main:0 Ohms
Mounting:Rigid base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:T
Overall Length:22.97 in
Frame Length:12.40 in
Shaft Diameter:1.375 in
Shaft Extension:5.005 in
Assembly/Box Mounting:F1 Only
