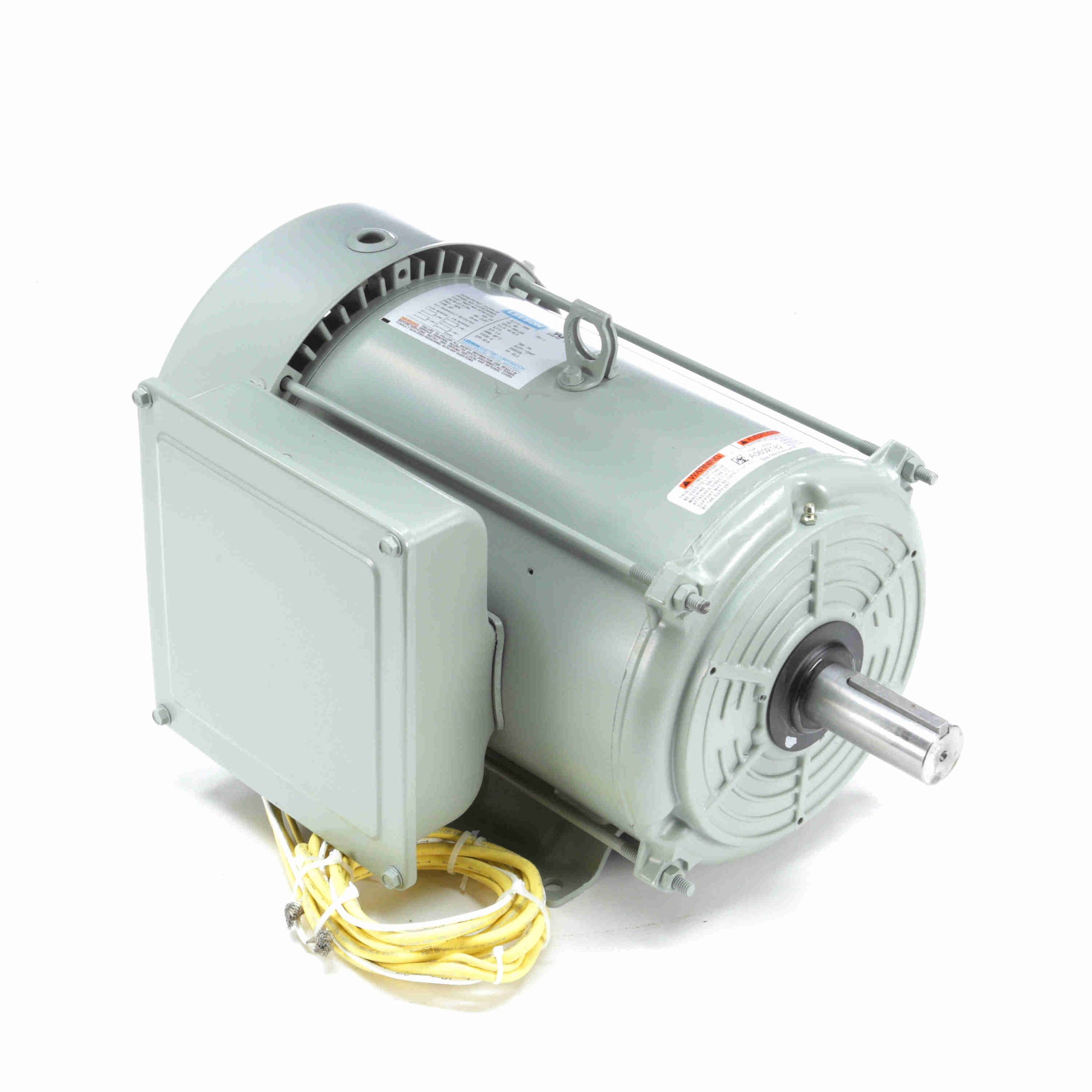

Leeson Electric 141393.00, 10 HP, 1800 RPM, 215T FR, 230 Vac, 1 PH, TEFC, Rigigd Base,Crop Dryer Motor.

141393.00, 10 HP, 1800 RPM, 215T FR, 230 Vac, 1 PH, TEFC, Rigigd Base,Crop Dryer Motor.

Engineering Data

Output HP:10 Hp
Output KW:7.5 kW
Frequency:60 Hz
Voltage:230 V
Current:40.0 A
Speed:1735 rpm
Service Factor:1
Phase:1
Efficiency:84 %
Power Factor:95
Duty:Continuous
Insulation Class:F
Design Code:No Design Code
KVA Code:H
Frame:215T
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6309
Opp Drive End Bearing Size:6206
UL:Recognized
CSA:Y
CE:NIP Code:43
Technical Specifications
Electrical Type:Capacitor Start Capacitor Run
Starting Method:Across The Line
Poles:4
Rotation:Selective Counterclockwise
Resistance Main:0 Ohms
Mounting:Rigid base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:T
Overall Length:22.97 in
Frame Length:12.40 in
Shaft Diameter:1.375 in
Shaft Extension:5.005 in
Assembly/Box Mounting:F1 Only
