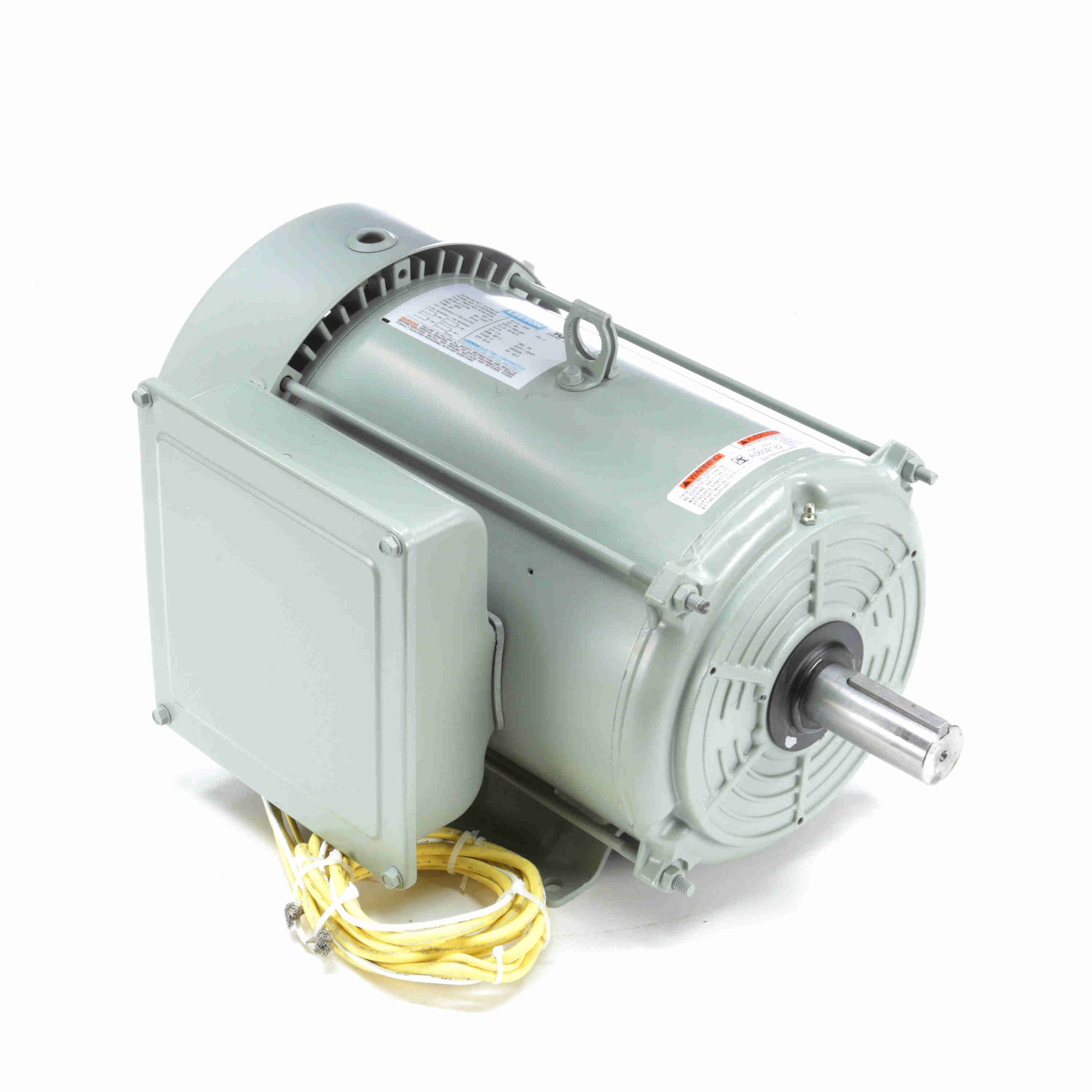

Made to Order: Leeson Electric 141394.00, 10 HP, 3600 RPM, 215TZ FR, 208/230 Vac, 1 PH, TEFC, Crop Dryer Motor.

141394.00, 10 HP, 3600 RPM, 215TZ FR, 208/230 Vac, 1 PH, TEFC, Crop Dryer Motor.

Engineering Data

Output HP:10 Hp
Output KW:7.5 kW
Frequency:60 Hz
Voltage:208-230 V
Current:44.0-41.5 A
Speed:3500 rpm
Service Factor:1
Phase:1
Efficiency:83.8 %
Power Factor:93.2
Duty:Continuous
Insulation Class:F
Design Code:NO DESIGN CODE
KVA Code:G
Frame:215TZ
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6307
Opp Drive End Bearing Size:6206
UL:Recognized
CSA:Y
CE:N
IP Code:43
Technical Specifications
Electrical Type:Capacitor Start Capacitor Run
Starting Method:Across The Line
Poles:2
Rotation:Selective Counterclockwise
Resistance Main:0 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:T
Overall Length:19.84 in
Frame Length:11.15 in
Shaft Diameter:1.375 in
Shaft Extension:3.47 in
Assembly/Box Mounting:F1 ONLY
