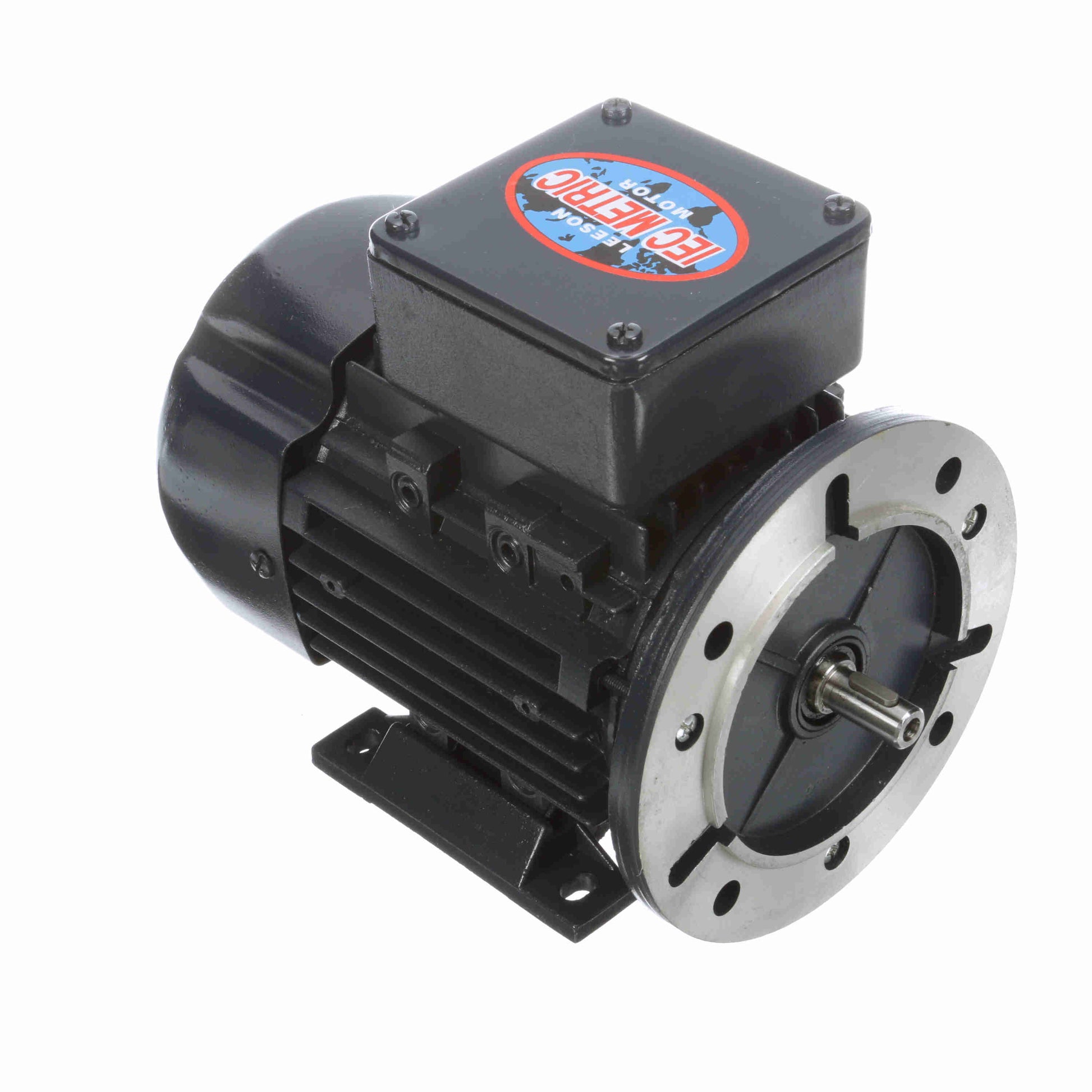

Leeson Electric 192045.00, 3/4 HP-0.56 kW, 1700 RPM, D80D FR, 230/460 Vac, 3 PH, TEFC, Rigid Base, B3/B5 Flange, AC Metric Motor (IEC).

192045.00, 3/4 HP-0.56 kW, 1700 RPM, D80D FR, 230/460 Vac, 3 PH, TEFC, Rigid Base, B3/B5 Flange, AC Metric Motor (IEC).

Engineering Data

Output HP:0.75 Hp
Output KW:0.56 kW
Frequency:60/50 Hz
Voltage:230/460 V
Current:2.5/1.3 A
Speed:1690 rpm
Service Factor:1.15
Phase:3
Efficiency:74 %
Power Factor:76
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:H
Frame:D80D
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6204
Opp Drive End Bearing Size:6204
UL:Recognized
CSA:Y
CE:
YIP Code:55
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Line Or Inverter
Poles:4
Rotation:Reversible
Resistance Main:6.77 Ohms
Mounting:B3
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Aluminum
Shaft Type:IEC
Overall Length:11.10 in
Frame Length:5.31 in
Shaft Diameter:0.750 in
Shaft Extension:1.57 in
Assembly/Box Mounting:F3
