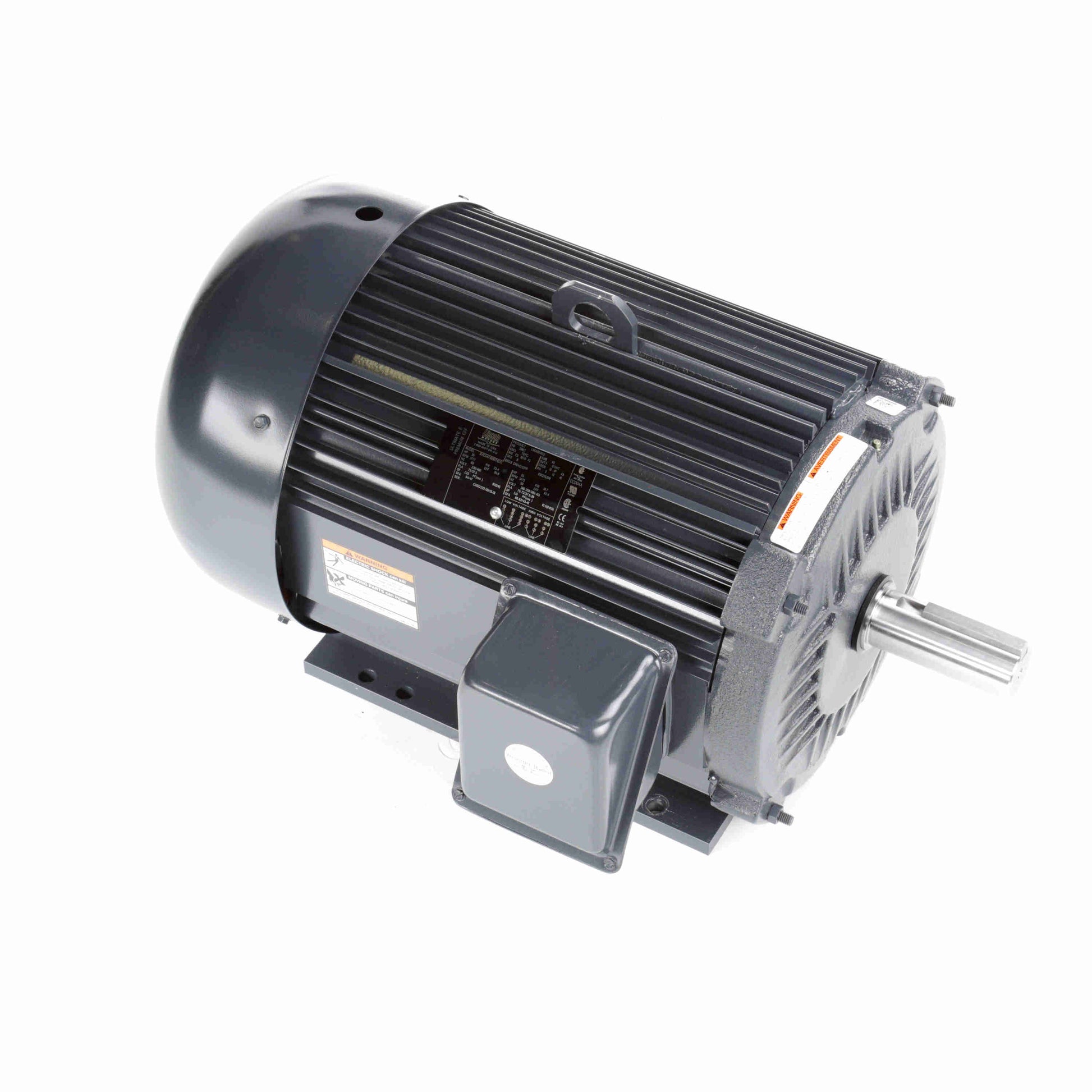

Leeson Electric LM16752, 7 1/2 HP, 1800 RPM, 213TC FR, TEFC, 230/460 Vac, 3 PH, Rigid Base, General Purpose

LM16752, 7 1/2 HP, 1800 RPM, 213TC FR, TEFC, 230/460 Vac, 3 PH, Rigid Base, General Purpose

Engineering Data

Output HP:7.50 Hp
Output KW:5.6 kW
Frequency:60/50 Hz
Voltage:230/460 V
Current:19.2/9.6 A
Speed:1770 rpm
Service Factor:1.25
Phase:3
Efficiency:91.7 %
Power Factor:79.5
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:H
Frame:213TC
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6208
Opp Drive End Bearing Size:6206
UL:Recognized
CSA:Y
CE:YIP Code:43
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Across The Line
Poles:4
Rotation:Reversible
Resistance Main:1.17 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Aluminum
Shaft Type:T
Overall Length:19.57 in
Frame Length:9.50 in
Shaft Diameter:1.375 in
Shaft Extension:3.38 in
Assembly/Box Mounting:F1/F2 CAPABLE
