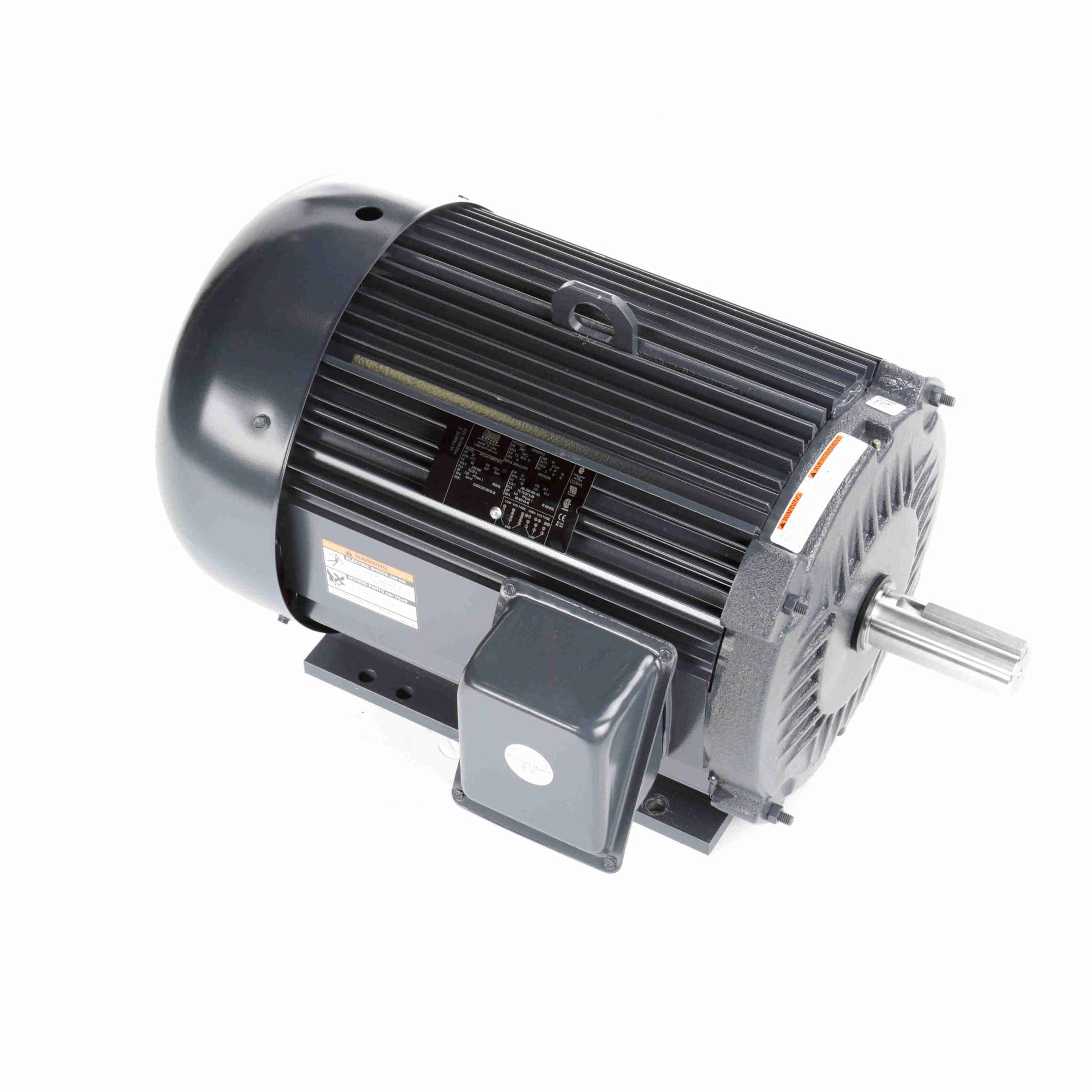

Leeson Electric LM16755, 10 HP, 3600 RPM, 215TC FR, TEFC, 230/460 Vac, 3 PH, Rigid Base, General Purpose

LM16755, 10 HP, 3600 RPM, 215TC FR, TEFC, 230/460 Vac, 3 PH, Rigid Base, General Purpose

Engineering Data

Output HP:10 Hp
Output KW:7.5 kW
Frequency:60/50 Hz
Voltage:230/460 V
Current:23.6/11.8 A
Speed:3535 rpm
Service Factor:1.25
Phase:3
Efficiency:91.7 %
Power Factor:87
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:H
Frame:215TC
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:208
Opp Drive End Bearing Size:206
UL:Recognized
CSA:Y
CE:YIP Code:43
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Line Or Inverter
Poles:2
Rotation:Reversible
Resistance Main:.8 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Aluminum
Shaft Type:T
Overall Length:20.57 in
Frame Length:10.50 in
Shaft Diameter:1.375 in
Shaft Extension:3.12 i
nAssembly/Box Mounting:F1/F2 CAPABLE
