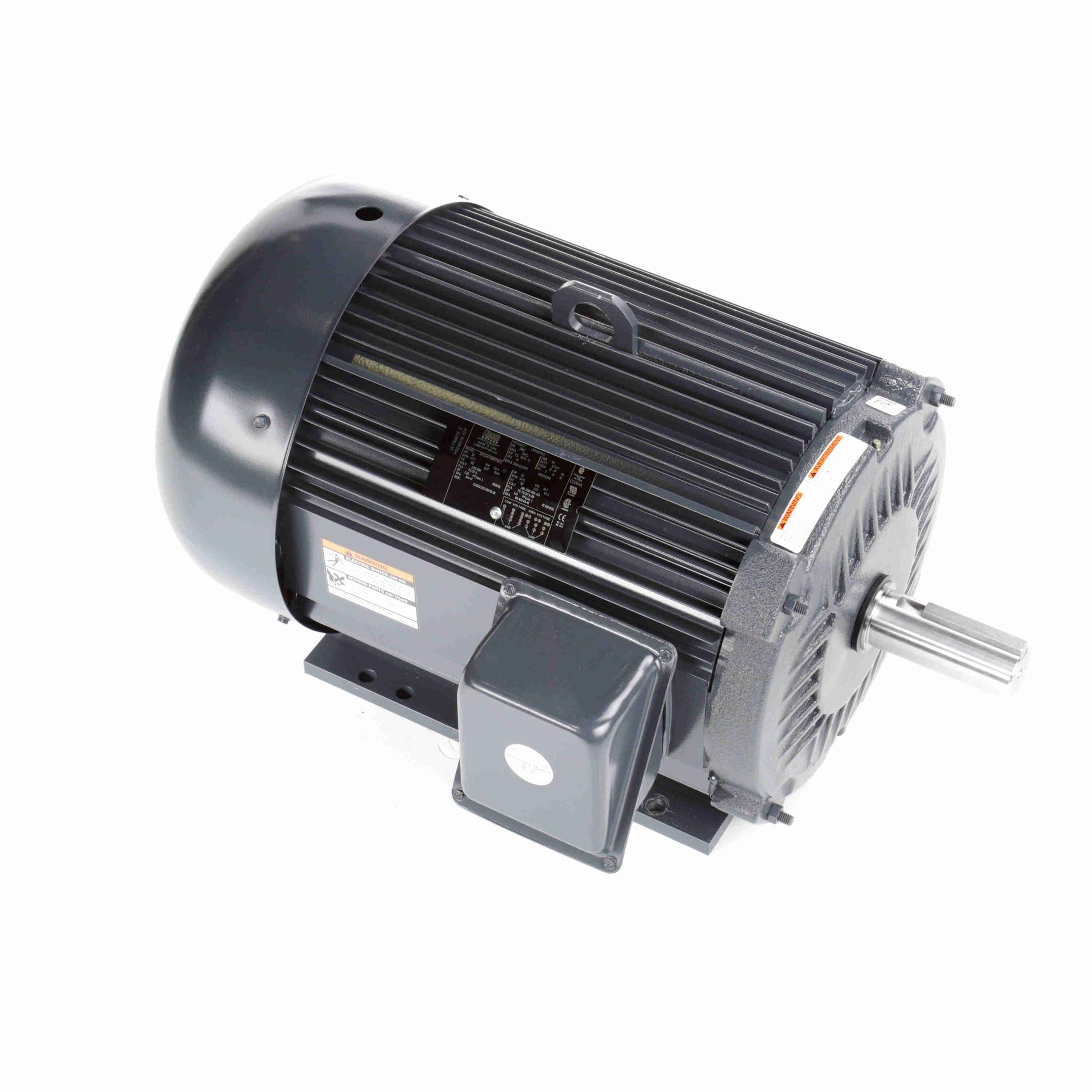

Leeson Electric LM16762, 15 HP, 1800 RPM, 254TC FR, TEFC, 230/460 Vac, 3 PH, Rigid Base, General Purpose

LM16762, 15 HP, 1800 RPM, 254TC FR, TEFC, 230/460 Vac, 3 PH, Rigid Base, General Purpose

Engineering Data

Output HP:15 Hp
Output KW:11.2 kW
Frequency:60/50 Hz
Voltage:230/460 V
Current:37.5/18.8 A
Speed:1775 rpm
Service Factor:1.25
Phase:3
Efficiency:92.4 %
Power Factor:81
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:G
Frame:254TC
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:309
Opp Drive End Bearing Size:208
UL:Recognized
CSA:Y
CE:Y
IP Code:43
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Across The Line
Poles:4
Rotation:Reversible
Resistance Main:.649 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Aluminum
Shaft Type:T
Overall Length:24.00 in
Frame Length:12.00 in
Shaft Diameter:1.625 in
Shaft Extension:4 in
Assembly/Box Mounting:F1/F2 CAPABLE
